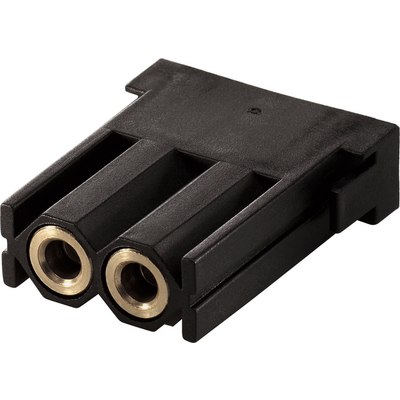

EPIC® MC Module Pneumatic 2pole

The mixed assembly guarantees high flexibility. For applications in machine and plant engineering, for robotics and slide-in technology.

The two-pole pneumatic module with valve is suitable for use in investment construction and can be used in temperature ranges from -20 to +100 degrees.

Pneumatic modules with valve for 2.5 und 4mm tubings

Supplementary automation components from LappMechanical and plant engineeringWind Energy

Article number Article descriptionContact typeNumber of operating contactsSlotsPieces / PU
Module: pneumatic 2-pin
44424008

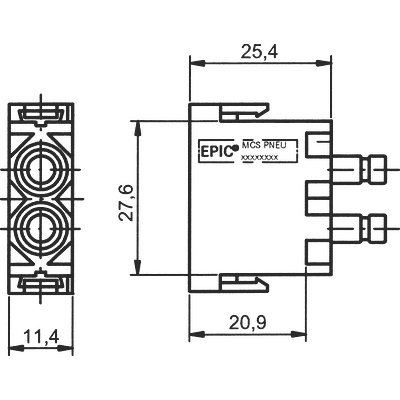

MCS 2x2,5 PNEU (10)male2110
44424009

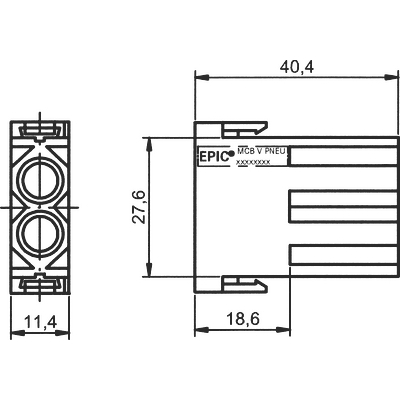

MCB 2x2,5 PNEU (10)female with valve2110
44424010
MCS 2x4,0 PNEU (10)male2110
44424011
MCB 2x4,0 PNEU (10)female with valve2110

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Assembly of individual connectors, suitable for different applications

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Contacts

  • Brass

Number of contacts

  • 2

Termination methods

  • Plug-in connection: for hose with inner diameter 2.5 mm/4.0 mm

Cycle of mechanical operation

  • 100

Operating presure

  • 8 bar

Testing presure

  • 10 bar

Temperature range

  • -20°C to +100°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
