ETHERLINE® PN FD Cat.5 M8

PROFINET Patchcord M8

Industrial Ethernet Profinet Type C, Patchcord M8, D-code, straight or angled, PUR; UL- approval; Cat.5 2pair

Article number Article designationLength (m)Copper index kg/1.000 pieces

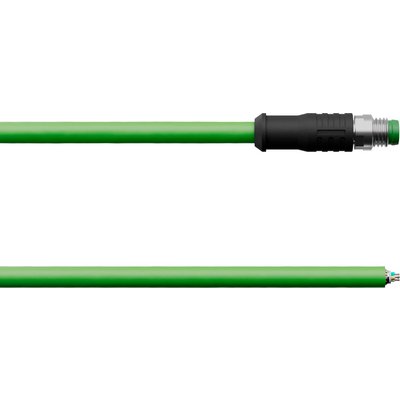

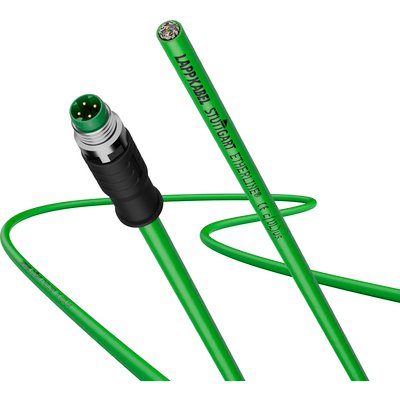

straight connector on free conductor end
24443008
IE-PNC-5-M8D-S-1-P-2-2131.3
24443009
IE-PNC-5-M8D-S-2-P-2-22-7-OE262.6
24443010
IE-PNC-5-M8D-S-5-P-2-22-7-OE5156.5
24443011
IE-PNC-5-M8D-S-10-P-2-22-7-OE10313

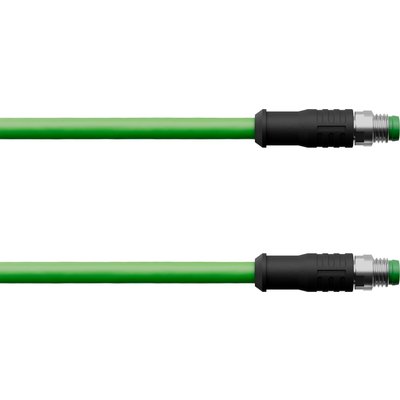

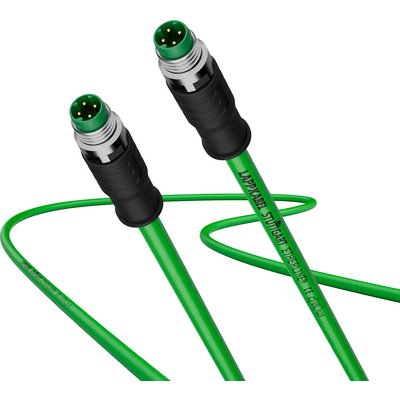

Straight connector on straight connector
24443000
IE-PNC-5-M8D-S-1-P-2-22-7-M8D-S131.3
24443001
IE-PNC-5-M8D-S-2-P-2-22-7-M8D-S262.6
24443002
IE-PNC-5-M8D-S-5-P-2-22-7-M8D-S5156.5
24443003
IE-PNC-5-M8D-S-10-P-2-22-7-M8D-S10313

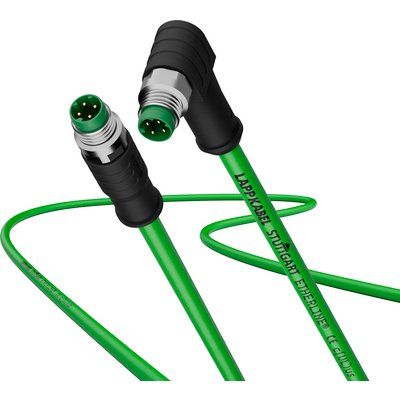

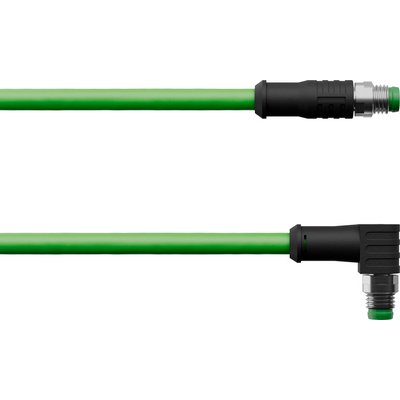

angled plug M8 on angled plug M8
24443012
IE-PNC-5-M8D-A-1-P-2-22-7-M8D-A131.3
24443013
IE-PNC-5-M8D-A-2-P-2-22-7-M8D-A262.6
24443014
IE-PNC-5-M8D-A-5-P-2-22-7-M8D-A5156.5
24443015
IE-PNC-5-M8D-A-10-P-2-22-7-M8D-A10313

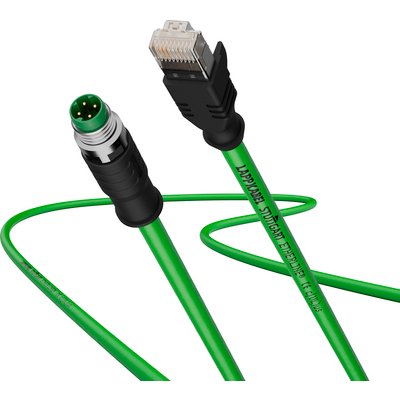

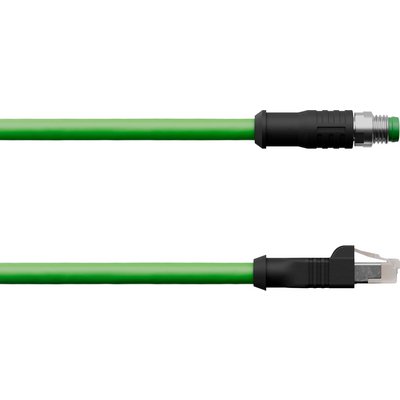

straight connector on RJ45
24443004
IE-PNC-5-M8D-S-1-P-2-22-7-RJ45131.3
24443005
IE-PNC-5-M8D-S-2-P-2-22-7-RJ45262.6
24443006
IE-PNC-5-M8D-S-5-P-2-22-7-RJ455156.5
24443007
IE-PNC-5-M8D-S-10-P-2-22-7-RJ4510313

Benefits

  • Available as a one-sided power cable assembly for flexible selection of the cable length and free choice of further connection.
  • Also available as a cable assembled on both sides to save time during installation.
  • Fast information exchange through ETHERNET technology.

Application range

  • For highly flexible, permanently moving use in moving machine parts and in the drag chain in the PROFINET network (type C)
  • Also suitable for EtherCAT and EtherNET/IP applications.
  • Can be used in dry and damp rooms.
  • The PUR outer sheath and connectors withstand high mechanical loads.
  • The PUR outer sheath is insensitive to mineral oil-based lubricants and is chemically resistant in many cases.

Product features

  • Optionally available with RJ45, M8D or M12D plug connection. The space-saving M8 plug connector is suitable for PROFINET applications in which M12D plug connectors cannot be used due to limited space.
  • Cat.5e performance up to 100 Mbit/s.
  • The connector's integrated vibration protection makes it resistant to shocks and vibrations.
  • The angled shape of the connector is suitable for the space-saving cable outlet.
  • Halogenfreie Aderisolier- und Mantelmischung zur Einhaltung besonderer Brandschutzanforderungen.

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002599
  • ETIM 6.0 Class-Description: Patch cord copper (twisted pair) industry

Minimum bending radius

  • Flexing: 8 x outer diameter
  • Fixed installation: 6 x outer diameter

Protection rating

  • M8 - IP65/IP68
  • RJ45 - IP20

Temperature range

  • Flexing: -20°C to +60°C
  • Fixed installation: -30°C to +80°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
