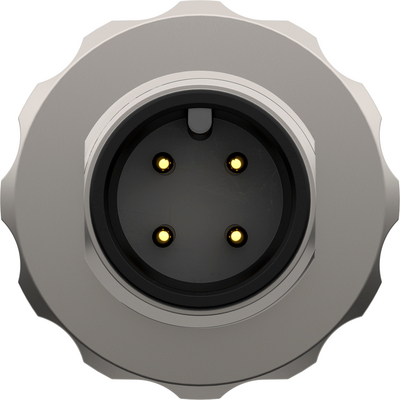

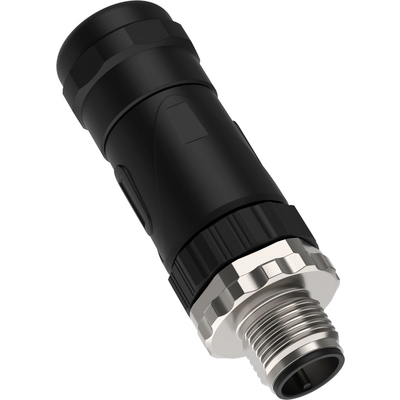

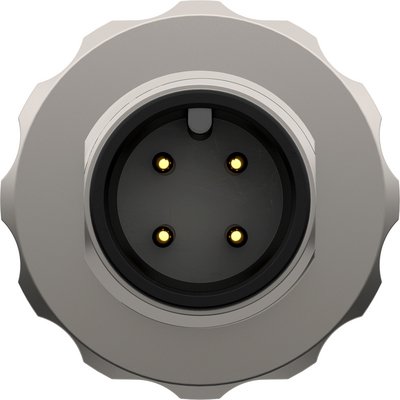

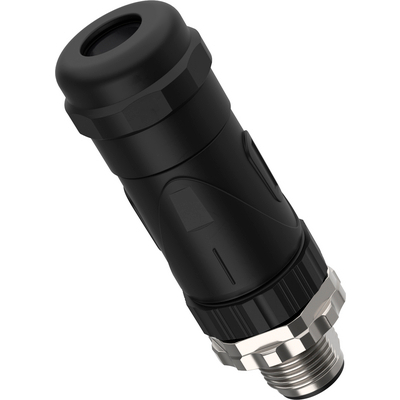

EPIC® SENSOR M12A Screw termination
Field mountable connectors M12
Off into the field: Whether in the fields of F&B, mechanical engineering or intralogistics, the M12A data connector is a professional in the field of signal transmission at sensor/actuator level. Thanks to push-in connection technology, cable assembly with this plastic connector is easier, faster and more tool-free than ever before!
Benefits
- High stability thanks to impact-resistant polyamide.
- Push-in connection allows the shortest connection times: Before inserting or removing the wires, all you have to do is press the release or lock to open the spring.
- When connected, protection class IP 67 can be achieved.
Application range
- Can be used universally at machine interfaces for many applications in data and signal transmission in the low-frequency range.
- Typical application areas are sensors and actuators at field level.
- Good oil and chemical resistance.
Product features
- Screw connection or insulation displacement contacts (IDC)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002062
- ETIM 5.0 Class-Description: Sensor-actuator connector
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002062
- ETIM 6.0 Class-Description: Sensor-actuator connector
Material
- Contact: CuZn
Contact surface: CuSnZn
Protection rating
- IP 67
Ambient temperature (operation)
- -25°C to +85°C
Contact material
- Copper alloy
Contact surface material
- Au (gold)
Coding
- A-standard
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
