UNITRONIC® SENSOR M8-M12

M8 plug on M12 socket

Sensor/actuator cordset, M8 on M12, PUR halogenfree, 3-pin, plug/socket, LED, A-coded, IP65/IP67/IP68, suitable for drag chains

Other types are available at
www.lappgroup.com/assemblyfinder
or on request

Waterproof UV-resistant Power chain Space requirement Assembly time Mechanical and plant engineering Supplementary automation components from Lapp

CULUS

Article number Article designation Number of pins Length (m) Design LED Rated voltage (V) PU
3-pin
22260241
AB-C3-M8MS-0,3PUR-M12FS 3 0.3 straight-straight no 60 1
22260242
AB-C3-M8MS-0,6PUR-M12FS 3 0.6 straight-straight no 60 1
22260243
AB-C3-M8MS-1,0PUR-M12FS 3 1 straight-straight no 60 1
22260244
AB-C3-M8MS-2,0PUR-M12FS 3 2 straight-straight no 60 1
22260245

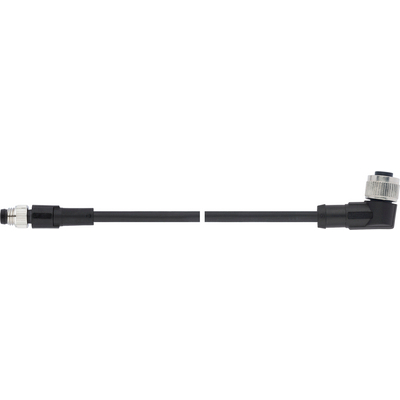

AB-C3-M8MS-0,3PUR-M12FA 3 0.3 straight-angled no 60 1
22260246
AB-C3-M8MS-0,6PUR-M12FA 3 0.6 straight-angled no 60 1
22260247
AB-C3-M8MS-1,0PUR-M12FA 3 1 straight-angled no 60 1
22260248
AB-C3-M8MS-2,0PUR-M12FA 3 2 straight-angled no 60 1
22260271

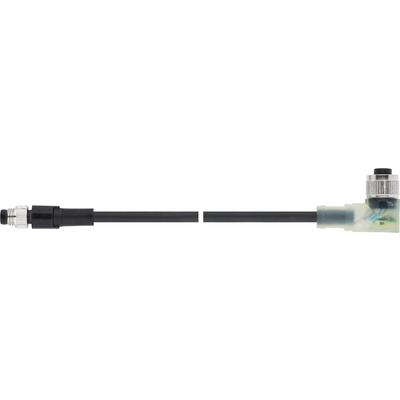

AB-C3-M8MS-0,3PUR-M12FA-2L 3 0.3 straight-angled 2 LEDs 24 1
22260272
AB-C3-M8MS-0,6PUR-M12FA-2L 3 0.6 straight-angled 2 LEDs 24 1
22260273
AB-C3-M8MS-1,0PUR-M12FA-2L 3 1 straight-angled 2 LEDs 24 1
22260274
AB-C3-M8MS-2,0PUR-M12FA-2L 3 2 straight-angled 2 LEDs 24 1

Benefits

  • Cost-efficient due to quick and easy installation
  • Space-saving due to compact dimensions
  • Fast and easy error tracking
  • Gold-plated contacts for low transfer resistance

Application range

  • For increased mechanical stress and harsh operating conditions

Product features

  • UV-resistant
  • Good resistance to oils and chemicals
  • PWIS and PVC free
  • Suitable for drag chains
  • Including tag carrier

Norm references / Approvals

  • Halogenfree according to DIN VDE 0472
  • UL File Number: E249137
  • Flame-retardant according to UL 1581 FT-2

Product Make-up

  • Core cross section: 0.25 mm2
  • Colour-code:
    3-pin: bn (1), bu (3), bk (4)
  • Outer sheath: PUR, black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001855
  • ETIM 5.0 Class-Description: Sensor-actuator patch cord

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001855
  • ETIM 6.0 Class-Description: Sensor-actuator patch cord

Material

  • Contact: CuSn
    Contact surface: Ni/Au
    Knurl: Zinc die-cast, nickel-plated
    Gripping body: TPU, flame-retardant, self-extinguishing

Minimum bending radius

  • Fixed installation: 5 x outer diameter
  • Flexing: 10 x outer diameter

Protection rating

  • IP65/IP67

Ambient temperature (operation)

  • Plug/socket -25°C to +90°C
  • Fixed installation -40°C to +80°C
    Flexing -25°C to +80°C

Coding

  • A-standard

Rated current (A)

  • 4 A

  • Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • UL certifications can be found in the data sheet.
