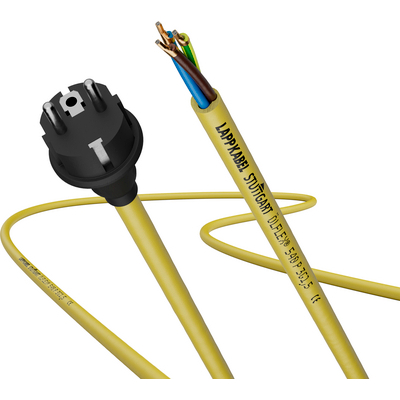

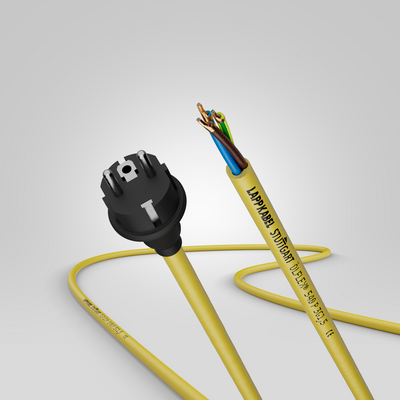

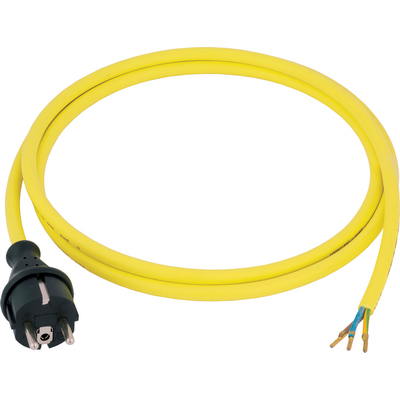

ÖLFLEX® PLUG 540 P single-phase hookup assembly

PUR-sheathed ÖLFLEX® & 250V CEE single-phase plug for 230/400V TN grid

Robust ÖLFLEX® PLUG 540 P PUR power cable, harnessed, 250 V single-phase CEE plug per VDE 0620 and w/ IP20 or IP44 on 1st end, core crimp sleeves on 2nd end

  • Mechanically robust, oil resistant PUR power cable w/ VDE Registration
  • Certified, moulded 250V single-phase plug acc. to VDE standard
  • Up to IP44 and/or K2 ability, depending on version

Mechanical and plant engineering Flame-retardant Assembly time Space requirement Reliability Voltage UV-resistant

CE VDE

Article number Charging current Length (m) Outer sheath colour Copper index kg/1.000 pieces
250V assembly with 2-pole, round CEE 7/17 pin attachment contour central plug without earth contact, IP20, PVC-based, regularly not for heavy-duty use conditions
73224180
2 X 0.75 2 yellow 28.8
73224181
2 X 0.75 3.5 yellow 50.4
73224182
2 X 0.75 5 yellow 72
73224183
2 X 1.0 2 yellow 38.4
73224184
2 X 1.0 3.5 yellow 67.2
73224185
2 X 1.0 5 yellow 96
73224186
2 X 1.5 2 yellow 58
73224187
2 X 1.5 3.5 yellow 101.5
73224188
2 X 1.5 5 yellow 145
250V assembly with 2-pole CEE 7/7 earth contact central plug, IP44, PVC-based - regularly not for K2 heavy-duty conditions or for construction/ installation sites due to cable's 300/500V class
73224189
3 G 0.75 2 yellow 43.2
73224190
3 G 0.75 3.5 yellow 75.6
73224191
3 G 0.75 5 yellow 108
73224192
3 G 1.0 2 yellow 58
73224193
3 G 1.0 3.5 yellow 101.5
73224194
3 G 1.0 5 yellow 145
250V assembly with 2-pole CEE 7/7 earth contact central plug, IP44, PVC-based - thanks to cable's 450/750V class for K2 heavy-duty conditions or for construction/ installation sites if secluded from special use conditions
73224195
3 G 1.5 2 yellow 86
73224196
3 G 1.5 3.5 yellow 150.5
73224197
3 G 1.5 5 yellow 215

Benefits

  • Ready-to-connect hookup power assembly for time-saving installation
  • Accordance of 3G1.5mm² versions with IP44 SchuKo/ earth contact plug (recognizable by "P07 3G1,5” in those articles’ short descriptions) with certain, technical provisions by relevant third party, such as German BG, resp. DGUV, on heavy-duty mechanical conditions, industrial use category K2, increased, electrical hazard, construction/ assembly sites
  • Compatible with plug-fit systems type E and type F as well as with pin assignment according to the Czech CSN standard for extensive use in Europe
  • Durable product, thanks to oil-, MUD-, abrasion-, notch- and cut-resistant outer sheath material of the cable, as well as UV, ozone and hydrolysis resistance of the assembly
  • Yellow signal colour of the outer sheath for quick visual perception and prevention of accidents and damage

Application range

  • Assembly and construction of appliances and control cabinets, for mobile use in particular, plugged into regular, European TN infrastructure with U0/U = 230/400 V in nominal voltage @ 50 to 60 Hz in frequency
  • 3-core variants with protection type IP 44 are suitable for outdoor use in Europe, and are permitted to be exposed to falling rain
  • 3-core variants with protection type IP44 and a conductor cross-section of 1.5 mm² (recognizable by "P07 3G1.5" within the article name) are suitable for industrial use category 2 (K2) according to German BGI/ GUV-I 600, for use as heavy design type in case of extended electrical hazard according to German BGI 594, and for use under heavy-duty mechanical conditions according to DIN VDE 0620-2-1, including construction and assembly sites according to German DGUV Information 203-006 (BGI/ GUV-I 608) (provided that extraordinary operating circumstances are excluded)
  • 2-core variants with protection type IP 20 must not get in contact with water and are generally not intended for industrial applications or construction/ assembly sites
  • Attention during installation regarding Tensile Strain Relief: The supple material of the cable's single core insulations has got a floating nature/stretchability, thus during wiring it shall be made sure the cable's single cores are relieved from tensile strain. Unplugging from power source/ socket (female) by grasping and pulling on the black plug (male) only, not on the yellow cord

Product features

  • Cable: LAPP's ÖLFLEX® 540 P flexible Class-5 power cable for occasional flexing and w/ HD 308 core identification code
  • Yellow PUR cable jacket: Halogen-free, flame retardant acc. to IEC 60332-1-2, UV resistant, ozone resistant, abrasion and notch resistant, hydrolysis resistant, microbe resistant, resistant to oil acc. to EN 50363-10-2, MUD resistant to drilling fluids acc. to Appendix D of IEC 61892-4
  • The integrated cable ÖLFLEX® 540 P withstands high mechanical loads, and is resistant to acids, alkalis and mineral oils
  • Plug-fit systems Type E (French) and Type F: CEE 7/17 plugs w/o earthing contact equally plug-compatible with both systems, CEE 7/7 plug w/ earthing contact additionally earth contacting to both plug-fit systems
  • Depending on the product's ultimate standard version, IP protection type IP20 (CEE 7/17) or IP44 (CEE 7/7);
    Standard plugs with IP44 fulfil heavy-duty conditions as per Appendix C of VDE 0620-2-1;
    All standard plugs' joint rated ampacity as per DIN VDE 0620-2-1 is 16 A;
    Black plugs UV resistant

Norm references / Approvals

  • Cable ÖLFLEX® 540 P by LAPP:
    VDE reg. no. 6583 - AC 300/500 V for 1 mm² and smaller;
    VDE reg. no. 6584 - AC 450/750 V from 1.5 mm² and larger
  • Standard plugs and moulding designed and tested acc. to DIN VDE 0620-2-1 (and a number of related, national design standards) and accordingly KEMA-KEUR certified by notified body DEKRA
  • Standard plugs and moulding designed and tested acc. to IEC 60884-1 and accordingly IECEE/IEC certified by notified body DEKRA, on the basis of CB Scheme test procedure
  • Normative foundation for processed, 2nd ending (dismantled, stripped, crimped): EN 61238-1, EN 60352-2

Product Make-up

  • VDE-registered, flexible (conductor class 5 per IEC 60228), yellow, chemically resistant TPE/PUR power cable ÖLFLEX® 540 P with core identification code as per HD 308, and - subject to nominal conductor cross section - different, low, nominal IEC voltage classes U0/U (see "Technical data")
  • Black-coloured, non-reconnectable (moulded), 250 V rated single-phase plugs as per DIN VDE 0620-2-1
  • Plug-fit systems Type E (French) and Type F: CEE 7/17 plugs w/o earthing contact equally plug-compatible with both systems, CEE 7/7 plug w/ earthing contact additionally earth contacting to both plug-fit systems. Both CEE plugs with functional pole-to-pin allocation acc. to Czech CSN Standard, yet still in line with most European allocations
  • Standard plug option 1: Round, straightly shaped, 2-pole pin attachment contour central plug without earth contact (CEE 7/17 style), made of PVC, protection type IP 20 (not waterproof)
  • Standard plug option 2: Straightly shaped 2-pole SchuKo [earth contact] central plug (CEE 7/7 style) made of PVC, Schutzart IP 44 (spritzwasserdicht)
  • Second cable end: 3 cm dismantling from cable end, stripped single core ends, solder-freely/ mechanically crimped crimp sleeves, as per DIN EN 60352-2, without cable lug, and with metal collar crimped onto core insulation
  • On request, close to standard product, and under additional LAPP part number: Additionally reinforced tensile strain relief between the cable's outer sheath and the plug's moulding

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001576
  • ETIM 5.0 Class-Description: Power cord

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001576
  • ETIM 6.0 Class-Description: Power cord

Core identification code

  • According to VDE 0293-308 (table T9)

Conductor stranding

  • Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Minimum bending radius

  • Occasional flexing: 10 x outer diameter
  • Fixed installation: 4 x outer diameter

Nominal voltage

  • Plugs' Rated Voltage 250 V as per VDE 0620-2-1 solely relevant and permissible regarding continuous operation of the entire, finished, harnessed assembly
  • IEC nominal AC voltage classes of the integrated metre ware cable ÖLFLEX® 540 P by LAPP, depending on the nominal conductor cross section of the cable:U0/U = 300/500 V for cable conductors of 1 mm² and smaller,
    U0/U = 450/750 V for cable conductors not smaller than 1.5 mm²
    (unpermissible
    as reference for the maximum, permanent operating voltage of the entire harnessed assembly, but instead
    solely the rated voltage of the plug of 250 V
    acc. to VDE 0620-2-1 is permissible for the assembly)

Test voltage

  • Assembly: 2000 V

Protective conductor

  • G = with GN-YE protective conductor

  • Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
  • Copper price basis: EUR 150/100 kg. Refer to catalogue appendix T17 for the definition and calculation of copper-related surcharges.
  • 1 piece in each polyester bag
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Please observe the safety information as per DIN VDE 0620-1, Plugs and socket-outlets for household and similar purposes - Part 1: General requirements, appendix E: "Installation only by persons with the relevant electrotechnical expertise and experience!”
