SKINDICHT® SHVE

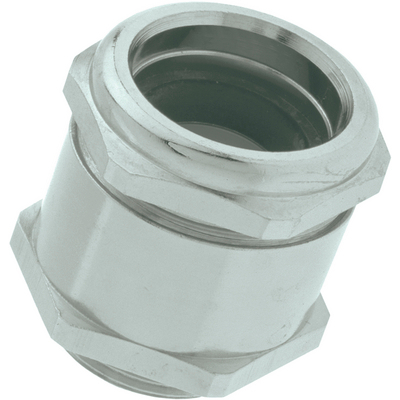

SKINDICHT® SHVE, PG cable gland with low-resistance 360° screen contact and high degree of protection, as earthing gland

Optimum strain reliefReliabilityInterference signalsTemperature-resistant

CE

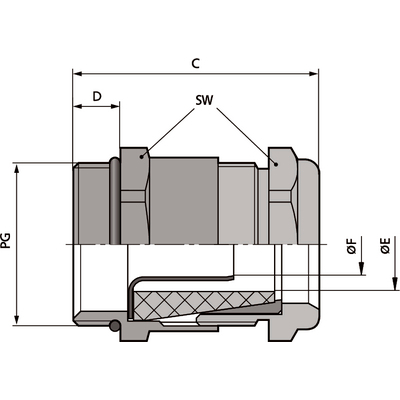

Article number Article designation / sizeOuter sheath Ø, min./max. (mm)Min./max. inner sheath Ø (mm)SW wrench size mmOverall length C mmThread length D mmPieces / PU
SKINDICHT® SHVE
52010400
9/9/6/3,24 / 5.82.2 / 3.21728.5625
52010405
9/9/7/3,25 / 6.82.2 / 3.21728.5625
52010415
9/9/6/3,64 / 5.82.6 / 3.61728.5625
52010420
9/9/7/3,65 / 6.82.6 / 3.61728.5625
52010440
11/11/7/4,55 / 6.83.5 / 4.52031.0625
52010450
11/11/9/4,56.8 / 8.83.5 / 4.52031.0625
52010460
13,5/9/9/56.8 / 8.83.5 / 52232.55.525
52010490
13,5/11/9/56.8 / 8.83.5 / 52232.55.525
52010470
13,5/9/9/66.8 / 8.84.5 / 62232.55.525
52010500
13,5/11/9/66.8 / 8.84.5 / 62232.55.525
52005080
13,5/13,5/9/66.8 / 8.84.5 / 62237.0625
52010480
13,5/9/11/78.5 / 10.85.5 / 72232.55.525
52010510
13,5/11/11/78.5 / 10.85.5 / 72232.55.525
52005090
13,5/13,5/11/78.5 / 10.85.5 / 72237.0625
52010520
16/11/11/88.5 / 10.86 / 82435.05.525
52010560
16/13,5/11/88.5 / 10.86 / 82435.5625
52005100
16/16/11/88.5 / 10.86 / 82437.5625
52010530
16/11/13/910.8 / 12.87 / 92435.05.525
52010570
16/13,5/13/910.8 / 12.87 / 92435.5625
52005110
16/16/13/910.8 / 12.87 / 92437.5625
52010540
16/11/13/1010.8 / 12.88 / 102435.05.525
52010580
16/13,5/13/1010.8 / 12.88 / 102435.5625
52005120
16/16/13/1010.8 / 12.88 / 102437.5625
52010550
16/11/15/1112 / 14.89 / 112435.05.525
52010590
16/13,5/15/1112 / 14.89 / 112435.5625
52005130
16/16/15/1112 / 14.89 / 112437.5625
52010600
21/16/16/1214 / 15.810 / 123038.56.525
52005140
21/21/16/1214 / 15.810 / 123043.5725
52010610
21/16/16/1314 / 15.811 / 133038.56.525
52005150
21/21/16/1314 / 15.811 / 133043.5725
52010620
21/16/18/1415.8 / 17.812 / 143038.56.525
52005160
21/21/18/1415.8 / 17.812 / 143043.5725
52010630
21/16/18/1515.8 / 17.813 / 153038.56.525
52005170
21/21/18/1515.8 / 17.813 / 153043.5725
52010640
21/16/20/1617.5 / 19.814 / 163038.56.525
52005180
21/21/20/1617.5 / 19.814 / 163043.5725
52005190
29/29/22/1719.5 / 21.815 / 174047.5810
52005200
29/29/22/1819.5 / 21.816 / 184047.5810
52005210
29/29/24/1921.5 / 23.817 / 194047.5810
52005240
29/29/26/1923.5 / 25.817 / 194047.5810

Benefits

  • Optimum, low-resistance 360° screen contact
  • High degree of protection
  • High strain relief

Application range

  • Earthing gland, for applications where electrical interference fields can occur.
  • Medical engineering
  • Frequency converters
  • Airports
  • Measurement and control technology

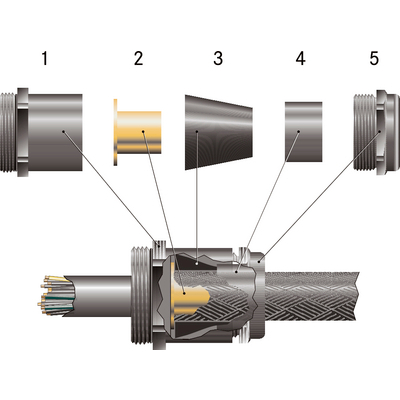

Product Make-up

  • 1 fitting
  • 2 earth sleeves
  • 3 sealing cones
  • 4 cone, brass
  • 5 compression screws

Note

  • Counter nut to be used: SKINDICHT® SM
  • EMC counter nut, SKINDICHT® SM nut should be used to ensure optimum contact with painted, anodised or powder-coated housings
  • Example order identification:
    SHVE 13.5 / 9 / 9 / 5
    13.5 = PG thread compression screw
    9 = PG connection thread
    9 = Clear width of sealing cone
    5 = Clear width earthing sleeve

Classification

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Caution

  • The installation dimensions
    can be found in appendix T21

Material

  • Body: nickel-plated
    Earthing sleeve: blank brass
    Special sealing cone: CR
    O-ring: NBR

Protection rating

  • IP 68 - 10 bar

Temperature range

  • -20°C to +80°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
