SKINDICHT® SE-M 220/320

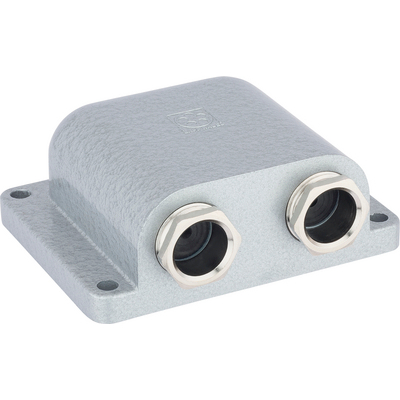

SKINDICHT® SE-M 220/320, angular cable outlet with 2-3 separate cable outlets, for missing connection thread and high mechanical load

product information (PDF)

Article number	Article designation / size	Incised sealing ring ØF (mm)	Overall height (mm)	SW wrench size mm	Overall length C mm	Overall width (mm)	Pieces / PU
SKINDICHT® SE-M 220/320
52108040	2 x M20 x 1,5	2 x 4/7/10/13	33.5	20	76.8	91.0	1
52108050	3 x M20 x 1,5	3 x 4/7/10/13	33.5	20	76.8	124.0	1
SKINDICHT® SE-M 220/320 without E+D
52108041	2 x M20 x 1,5	-	33.5	-	70.0	91.0	1
52108051	3 x M20 x 1,5	-	33.5	-	70.0	124.0	1

Benefits

Combination of various conduit glands is possible depending on the type
Low overall height
High stability
Two or three separate cable outlets

Application range

For high mechanical stress
When no connection thread is provided

Note

Type SKINDICHT® SE-M 220/320 without E+D is without incised sealing ring (E) and without compression screw (D)
Type SKINDICHT® SE-M 220/320 without E+D can be combined with all cable glands (incl. O-ring) such as sealing, strain-relief, anti-kink, conduit-connecting or earthing glands
The protection class is dependent on the combination with the various special glands. The minimum standard is IP 55.

Classification ETIM 5

ETIM 5.0 Class-ID: EC000441
ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

ETIM 6.0 Class-ID: EC000441
ETIM 6.0 Class-Description: Cable screw gland

Material

Body: zinc die-casting, hammer tone finish
Compression screw: nickel-plated brass
Incised sealing ring: CR/NBR
Flat sealing: SBR

Protection rating

IP 55

Temperature range

-20°C to +80°C

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
