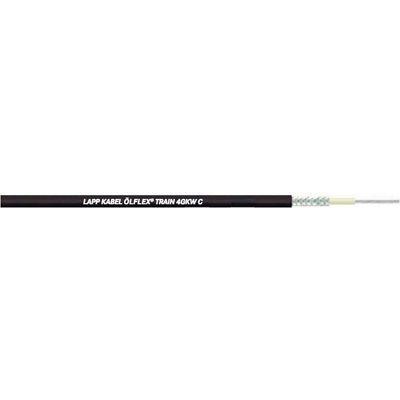

ÖLFLEX TRAIN 4GKW C

Einadrige 1,8kV Starkstromleitung für erhöhte Anforderungen im Bahnbereich

ÖLFLEX® TRAIN 4GKW - Einzeladerleitung Typ OM, für Schienenfahrzeuge/Bahn, 1,8/3kV, EN 45545: HL1-HL3, BS 6853

  • Meets EN 50264-3-1 type M
  • High temperature resistance : -40°C up to +125°C
  • Highly oil- and fuel-resistant
Article number Number of cores and mm² per conductorOuter diameter [mm]ColourCopper index (kg/km)Weight (kg/km)
3823336
1 X 1.55.2black25.147
3823337
1 X 2.55.6black36.360
3823338
1 X 4.06.5black52.685
3823339
1 X 6.08.0black78.6124
3823340
1 X 10.09.4black121.4182
3823341
1 X 16.011.0black185.1256
3823342
1 X 25.013.2black283.3378
3823343
1 X 35.014.6black385.1489
3823344
1 X 50.016.9black567670
3823345
1 X 70.018.8black737876
3823346
1 X 95.020.7black9861121
3823347
1 X 120.023.1black12391396
3823348
1 X 150.025.5black15321700
3823349
1 X 185.027.9black19032090
3823350
1 X 240.030.8black24472646
3823351
1 X 300.034.1black30383291

Benefits

  • High flexibility and slim diameters enable small bending radii at fixed installation
  • Resistant to mechanical influences in harsh environmental conditions
  • Expanded temperature range
  • Excellent chemical resistance and high Flammability rating as well
  • Reduced formation of toxic gases and fire spreading in the event of fire increase the protection against damage to persons and property

Application range

  • For fixed and protected installations inside or outside of railed vehicles and busses
  • For connection of stationary and moving parts
  • Suitable for cabling of switchboards, converters, panel units and rheostatic braking blocks

Product features

  • Halogen-free (IEC 60754-1) & No corrosive gases (IEC 60754-2)
  • No toxic gases (EN 50305, BS 6853)
  • Low smoke density (IEC 61034-2)
  • Flame retardant (IEC 60332-1-2)
  • No fire spreading (EN 50305, BS6853)

Norm references / Approvals

  • EN 50264-3-1, type OM
  • BS 6853 ( Interior use Ia, Ib,Ⅱ & Exterior use Ia, Ib,Ⅱ)
  • EN 45545-2 HL1, HL2, HL3
  • Compliant with NFPA 130

Product Make-up

  • Conductor : Tinned copper strand, fine wired
  • Inner Insulation : Electron beam cross-linked polyolefin copolymer, Natural colour
  • Braiding : Tinned copper braid
  • Outer sheath : Electron beam cross-linked polyolefin copolymer, Black colour

Temperature range

  • Fixed installation : -40℃ up to +125℃ max.
  • Occasional flexing : -35℃ up to +90℃ max.

Minimum bending radius

  • Fixed installation : ≤ 12㎜ : 4 x OD / 3 x OD*, > 12㎜ : 5 x OD / 4 x OD*, * for careful bending, once at connecting terminal

Nominal voltage

  • U0/U AC 1.8 / 3.0 kV, Um AC 3.6kV, Vo DC 2.7kV

Conductor stranding

  • Fine wired acc. to IEC 60228 class 5

Test voltage

  • 6.5kV AC

  • Unless specified otherwise, the shown product values are nominal values at room temperature. You can receive further values, such as tolerances, upon request if they available and have been released for publication.
  • Packaging: Ring ≤ 30 kg or ≤ 250 m, otherwise drum
  • Please specify the preferred packaging (e.g. 1 x 500 m drum or 5 x 100 m rings)
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
