FKK Flat cable wedge clamps
FKK 08 wedges for fastening flat cables up to 10 mm cable thickness

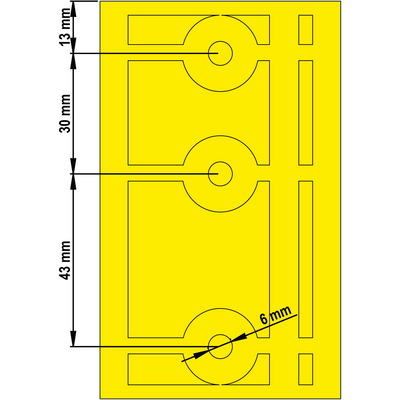

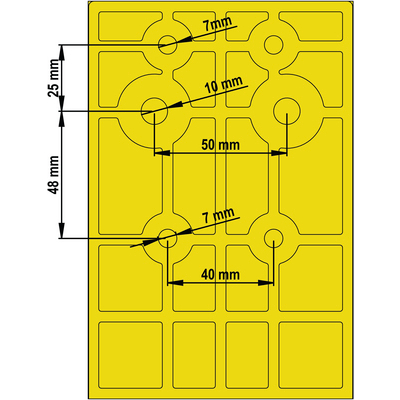

Suitable mounting plates in the web catalog
Article number | Article designation | Number of cables | Max. total cable length (mm) | Weight (g) | Pieces / PU | |
---|---|---|---|---|---|---|
52026051
| FKK 08 | 1-2 | 50 x 10 | 103 | 1 | |
52026050
| FKK 07 | 1-3 | 90x17 | 349 | 1 |
Benefits
- On the shaft side, the mounting plate can be screwed onto the wall or bolted or welded to the rail bracket
- The mounting plate can be bolted or welded to the lift cage
Application range
- Mounting flat control cables
Product Make-up

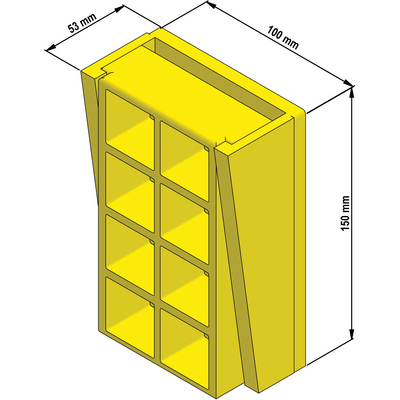

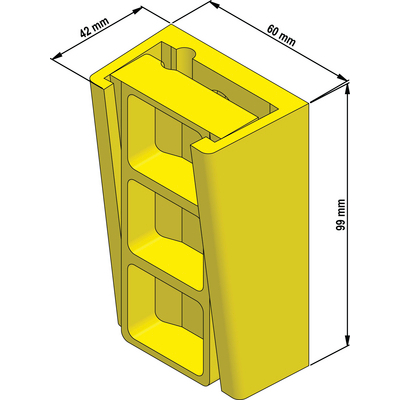

- The small wedge-shaped cable clamp can hold up to 2 flat cables, the big one up to 3 flat cables
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002407
- ETIM 5.0 Class-Description: Accessories for installation rail current/data cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002407
- ETIM 6.0 Class-Description: Accessories for installation rail current/data cable
Info
- Clamping force (at overall cable thickness):
FKK 08: 2-10mm = 600-800N
FKK 07: 2-9mm / 16-17mm = 800N - Minimum insert depth for wedge:
FKK 08: 60% = 60mm
FKK 07: 60% = 90mm
Material
- Polyamide 6.6 - halogen-free
Temperature range
- Operating temperature: -20°C to +50°C
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
