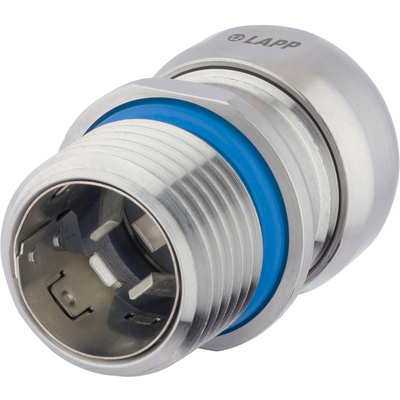

SKINTOP® INOX SC NPT

SKINTOP® INOX / SKINTOP® INOX-R,corrosion-resistant stainless steel cable gland with smooth surfaces, compact design, sea water-resistant

  • Stainless steel version with compact design
  • Optimum EMC protection

Food & Beverage Suitable for outdoor use Good chemical resistance Wide clamping range Mechanical resistance Temperature-resistant

CE CULUS cRUus ECOLAB NSF

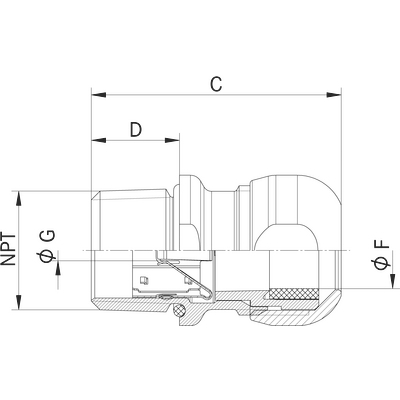

Article number Article designation / size Clamping range ØF mm SW wrench size mm Overall length C mm Thread length D mm Pieces / PU
53806818
NPT 1/4" 4 - 7 16 37.8 15 5
53806819
NPT 3/8" 6 - 10 20 40.4 15 5
53806820
NPT 1/2" 7 - 13 24 42.5 15 5
53806821
NPT 3/4" 9 - 17 29 46.2 15 5
53806822
NPT 1" 11 - 21 36 50.6 15 5
53806823
NPT 1 1/4" 19 - 28 45 59.2 17 5
53806824
NPT 1 1/2" 27 - 35 54 63.2 17 5

Benefits

  • Smooth surfaces - no edges
  • Compact design
  • Wide, variable clamping ranges
  • Low-resistance screen contact, optimum EMC protection
  • Highly conductive, flexible EMC contact for clamping various screen diameters

Application range

  • For EMC-compliant earthing of the copper braiding
  • Pharmaceutical industry
  • Food industry (product-free zone, splash zone)
  • Onshore and offshore applications
  • Bottling plants and breweries

Norm references / Approvals

  • ECOLAB®
    Industry standard in the field of professional cleaning and disinfection in the food and beverage industry
  • DIN EN 1672-2
    Guideline for the design of machinery
  • DIN EN ISO 14 159
    Security of machinery – Hygienic requirements for the design of machinery
  • NSF/ANSI 169
    Hygienic design for machinery and components

Product Make-up

  • NPT connection thread acc. to ASME B1.20.1 - 2013

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000441
  • ETIM 5.0 Class-Description: Cable screw gland

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000441
  • ETIM 6.0 Class-Description: Cable screw gland

Material

  • Body: stainless steelV4A
    (1.4404 / 316L)
    Insert: polyamide
    Sealing: silicone
    O-Ring: silicone

Protection rating

  • NEMA Type 1, Type 2, Type 4X, Type 6, Type 12 according to UL50E
  • IP 68 - 5 bar

Temperature range

  • -40°C to +100°C
