Drum cart

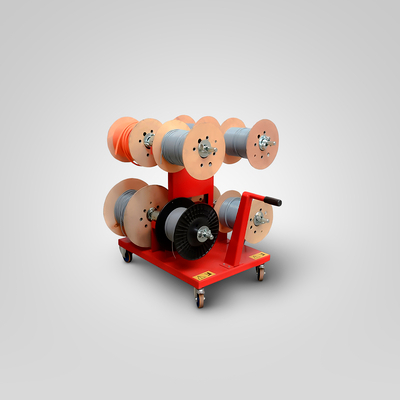

Mobile cart for transporting, storing and unwinding cable drums.

The drum cart can be extended to accommodate four additional drums using an additional mounting.

Article number Article designation
85001631 Drum cart

Benefits

  • Mobile and flexible storage solution
  • Transport and easy unwinding of several drums on operation site

Application range

  • Transporting, storing and unwinding of cable drums

Product features

  • Mobile cart for transporting and storing of eight drums
  • Pulling and steering of the cart by means of a drawbar
  • Suitable for drums with a width of up to 420mm, a flange diameter of 400 and 500mm and a flange drilling of 80mm
  • Equipped with braking spool axis (Ø 25mm) with centering crowns
  • Optional available: Brakes for spool axis (Article 85008082)

Dimensions

  • L=1250mm, W=1100mm, H=1150mm

General data

  • Weight (without drums): 90 kg
  • Max. load: 400 kg (50 kg per drum)

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
