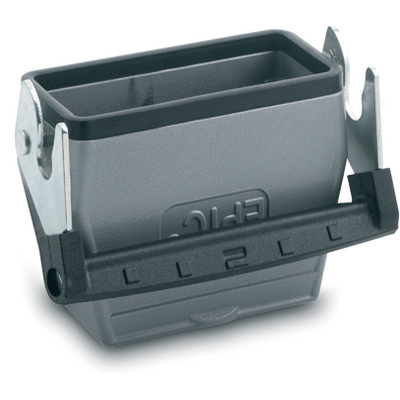

EPIC® H-B 24 TBF-LB

Housing design H-B. The industry standard.

The universal metal housing with a single lever and a direct cable entry is ideal for investment construction applications.

  • Single Lever version for quick locking and simple unlocking with lifting aid
  • Protection rating UL50E tested

Waterproof Robust Mechanical resistance Mechanical and plant engineering Supplementary automation components from Lapp

cRUus VDE audited

Article number Article description M PG Neck Pieces / PU
H-B housing: cable coupler hood (1 straight cable entry, single lever)
10127900
H-B 24 TBF-LB 21 - 21 yes 5
10117900
H-B 24 TBF-LB 29 - 29 yes 5
19127900
H-B 24 TBF-LB M25 25 - - 5
19117900
H-B 24 TBF-LB M32 32 - - 5

Benefits

  • Safe fixing with 4 screws
  • Casted neck for easy assembly of the cable gland

Application range

  • Plant engineering
  • Light & sound technology
  • Plastics industry

Product features

  • Cable coupler hood, low version
  • Single lever
  • Straight cable entry
  • Versions with / without neck

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
