FLEXIMARK® Organized shrink tube FCC

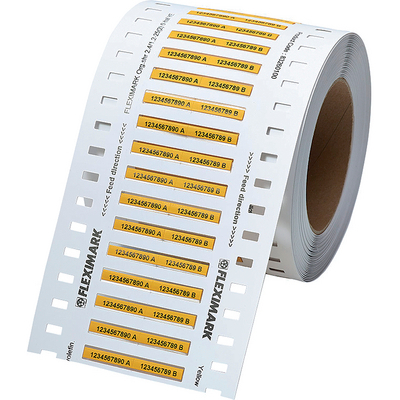

FLEXIMARK® Organized shrink tubes FCC are shrink tubes for marking single cores and wires with individual text. These markers are sent with your desired text.

Space requirement Assembly time Halogen-free Rail Mechanical and plant engineering Flame-retardant

Article number Article designation Colour Shrinkage range (mm) Length (mm) Markers / PU
83280249
FLEXIMARK® O.shr FCC 2.4/1.2-12.5 YE yellow 1.2 - 2.4 12.5 1
83280252
FLEXIMARK® O.shr FCC 2.4/0.8-16.6 YE yellow 1.2 - 2.4 16.6 1
83255385
FLEXIMARK® O.shr FCC 2.4/1.2-25 YE yellow 1.2 - 2.4 25 1
83280250
FLEXIMARK® O.shr FCC 3.2/1.6-12.5 YE yellow 1.6 - 3.2 12.5 1
83280253
FLEXIMARK® O.shr FCC 3.2/1-16.6 YE yellow 1.6 - 3.2 16.6 1
83255386
FLEXIMARK® O.shr FCC 3.2/1.6-25 YE yellow 1.6 - 3.2 25 1
83280251
FLEXIMARK® O.shr FCC 4.8/1.6- 12.5 YE yellow 2.4 - 4.8 12.5 1
83280254
FLEXIMARK® O.shr FCC 4.8/1.6-16.6 YE yellow 2.4 - 4.8 16.6 1
83255387 FLEXIMARK® O.shr FCC 4.8/2.4-25 WH white 2.4 - 4.8 25 1
83255388
FLEXIMARK® O.shr FCC 2.4/1.2-12.5 WH white 1.2 - 2.4 12.5 1
83255389
FLEXIMARK® O.shr FCC 2.4/1.2-16.6 WH white 1.2 - 2.4 16.6 1
83255390
FLEXIMARK® O.shr FCC 2.4/1.2-25 WH white 1.2 - 2.4 25 1
83255391
FLEXIMARK® O.shr FCC 3.2/1.6-12.5 WH white 1.6 - 3.2 12.5 1
83255392
FLEXIMARK® O.shr FCC 3.2/1.6-16.6 WH white 1.6 - 3.2 16.6 1
83255393
FLEXIMARK® O.shr FCC 3.2/1.6-25 WH white 1.6 - 3.2 25 1
83255394
FLEXIMARK® O.shr FCC 4.8/2.4-12.5 WH white 2.4 - 4.8 12.5 1
83255395
FLEXIMARK® O.shr FCC 4.8/2.4-16.6 WH white 2.4 - 4.8 16.6 1
83255396 FLEXIMARK® O.shr FCC 4.8/2.4-25 WH white 2.4 - 4.8 25 1

Benefits

  • Halogen-free shrink tubes with customized text
  • Benefit in comparison with marking rings: You do not have to mount every single character at a time, just order and mount whole series at once
  • Already cut to the exact length

Application range

  • For single core marking
  • Marking before assembly

Note

  • Markers will be delivered with the desired text (printing service is included in the price)
  • Ordering process: Customer-specific data will be emailed as an Excel file to the responsible Lapp employee when the order is made
    Column A: Row 1 content
    Column B: Row 2 content
    Column B or C: Number of markers with corresponding text

Included

  • 1 PU= 1 marker, there is no mimimum purchase quantity

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001288
  • ETIM 5.0 Class-Description: Labelling material

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001288
  • ETIM 6.0 Class-Description: Labelling material

On request

  • Also available as version with a 3:1 shrink ratio (not halogen-free, UL 224 approved)

Colour delivered

  • yellow

Material

  • Polyolefin (halogen-free)
  • Shrinking ratio: 2:1

Temperature range

  • -30°C to +105°C
  • Shrinking temperature: +90°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • FLEXIMARK® products are sold in packaging units. As example if you like to order 640 labels of LCK 32 you just need to order 1 PU instead of 640 single labels.
