HITRONIC® HRH Breakout Cable

Divisible breakout cable for direct connector assembly; J-V(ZN)HH

Splitable HITRONIC® HRH Breakout cable for direct connector assembly; J-V(ZN)HH, available with multimode fibres OM1, OM2, OM3 and OM4 or single-mode OS2

  • CPR: Article number choice under www.lappkabel.com/cpr
  • Breakout cable for direct
    connector assembly

Halogen-freeHeat-resistantLow weightOptimum strain relief

EtherNetIP

Article number Article designationFibre typeNumber of fibresOuter diameter [mm]Weight (kg/km)
Multimode G 50 OM4
26000402
HITRONIC HRH400 2G 50/125 OM450/125 OM42735
26000404
HITRONIC HRH600 4G 50/125 OM450/125 OM44744
26000408
HITRONIC HRH1200 8G 50/125 OM450/125 OM489.777
26000412
HITRONIC HRH1700 12G 50/125 OM450/125 OM41210.3100
Multimode G 50 OM3
26000302

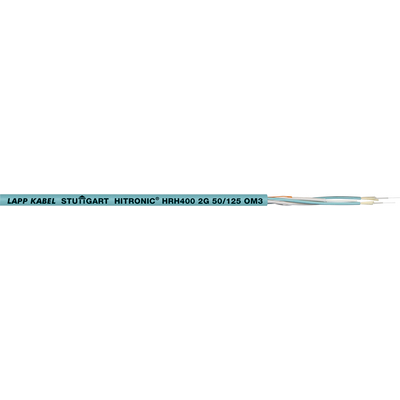

HITRONIC® HRH400 2G 50/125 OM350/125 OM32735
26000304
HITRONIC® HRH600 4G 50/125 OM350/125 OM34744
26000308
HITRONIC® HRH1200 8G 50/125 OM350/125 OM389.777
26000312
HITRONIC® HRH1700 12G 50/125 OM350/125 OM31210.3100
Multimode G 50 OM2
26000202
HITRONIC® HRH400 2G 50/125 OM250/125 OM22735
26000204
HITRONIC® HRH600 4G 50/125 OM250/125 OM24744
26000208
HITRONIC® HRH1200 8G 50/125 OM250/125 OM289.777
26000212

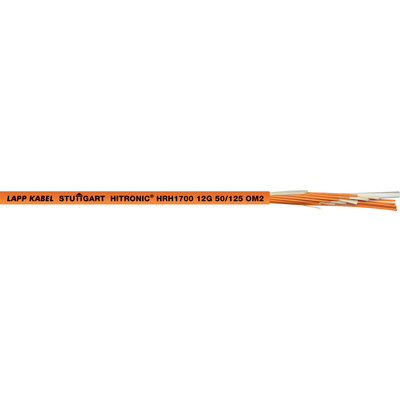

HITRONIC® HRH1700 12G 50/125 OM250/125 OM21210.3100
Multimode G 62.5 OM1
26000102
HITRONIC® HRH400 2G 62.5/125 OM162.5/125 OM12735
26000104
HITRONIC® HRH600 4G 62.5/125 OM162.5/125 OM14744
26000108
HITRONIC® HRH1200 8G 62.5/125 OM162.5/125 OM189.777
26000112
HITRONIC® HRH1700 12G 62.5/125 OM162.5/125 OM11210.3100
Single-mode E 9 OS2
26000902
HITRONIC® HRH400 2E 9/125 OS29/125 OS22735
26000904
HITRONIC® HRH600 4E 9/125 OS29/125 OS24744
26000908
HITRONIC® HRH1200 8E 9/125 OS29/125 OS289.777
26000912
HITRONIC® HRH1700 12E 9/125 OS29/125 OS21210.3100

Benefits

  • Suitable for field assembly
  • Universal cable for cabling of
    buildings
  • Very easy to install due to compact design,
    high flexibility, and small bending radii
  • Zero electromagnetic interference as the cable contains no metal (totally dielectric)

Application range

  • For indoor use
  • Tertiary cabling
  • Structured cabling - backbone
  • Methods of Deployment: laying in trunking, ducts, trays, empty plastic pipes, building riser, raised floors and plenums

Product features

  • Installation cable with up to
    12 Simplex cables
  • Outer sheath flame-retardant and halogen-free
  • Mechanically robust

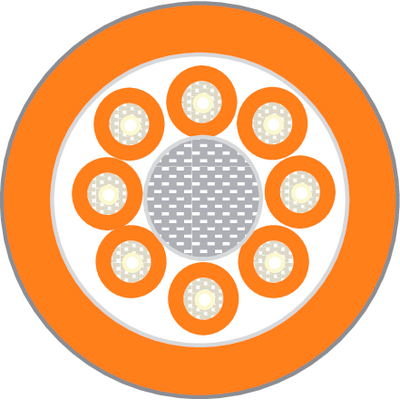

Product Make-up

  • 2.1 mm tight-buffered sub-cable
    with LSZH sheath (identified by numbers)
  • Central GRP strength element
  • Aramid yarns as strain relief
  • LSZH inner and outer sheaths
  • Colour: violet for OM4, aqua (RAL 6027) for OM3, orange (RAL 2003) for OM2 and OM1,
    yellow for Single-mode

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000034
  • ETIM 5.0 Class-Description: Fibre optic cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000034
  • ETIM 6.0 Class-Description: Fibre optic cable

Dimensions

  • tight-buffer (secondary coated fibre): 900µm
  • sub-cable: 2.1mm

Core identification code

  • Sub-cable: with black numbers

Fibre type

  • GOF - Glass Optical Fibre

Standard designation

  • J-V(ZN)HH

Optical values

  • see data sheet

Optical fibre type

  • Core material: glass
  • Cladding material: glass

Permissible bending radius

  • Static: ≥ 15 x outer diameter
  • Dynamic: ≥ 20 x outer diameter

Temperature range

  • Fixed installation: -20°C to +70°C

  • Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
  • The cables can also be supplied as pre-terminated fibre optic trunks.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Available on request with multi-mode OM4 fibres
    (outer sheath colour violet).
