SILVYN® LCG-M

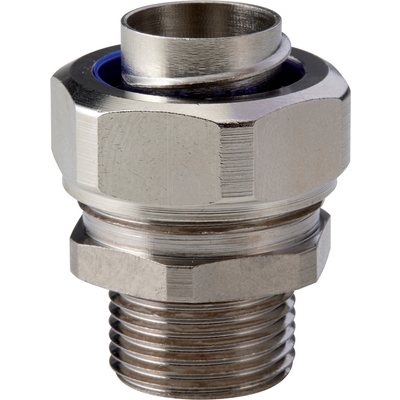

SILVYN® LCG-M is a nickel-plated brass conduit fitting that offers IP65 protection due to its integrated pressure seal

Temperature-resistant Robust Oil-resistant Mechanical resistance Maximum vibration protection Corrosion-resistant

CE LLOYDS

Article number Metric size SW 1/2 mm Overall length mm Thread length mm Suitable for SILVYN® LCC-2/LCCH-2
SILVYN® LCG-M
55503220
12 x 1.5 20 / 20 29.8 10 10
55503221
16 x 1.5/1 20 / 22 29.8 10 12
55503222
16 x 1.5/2 24 / 26 33 12 16
55503223
20 x 1.5/1 24 / 26 33 12 16
55503224
20 x 1.5/2 26 / 29 33.5 12 20
55503225
25 x 1.5 33 / 35 40.5 14 25
55503226
32 x 1.5 40 / 42 45.8 15 32
55503227
40 x 1.5 56 / 58 47.5 16 40
55503228
50 x 1.5 70 / 70 51 16 50

Benefits

  • High tensile strength
  • Vibration protection
  • Enhanced sealing

Application range

  • In combination with protective conduit:
  • SILVYN® LCC-2 / LCCH-2
  • Applications with high mechanical stress
  • Used in areas where liquids are present

Product Make-up

  • Metric connection thread
  • Hexagonal collar
  • Threaded sleeve
  • Cap nut

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Norm references / Approvals

Material

  • Body: nickel-plated brass
    Seal: PA compression seal

Protection rating

  • IP 65

Temperature range

  • -50°C to +135°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
