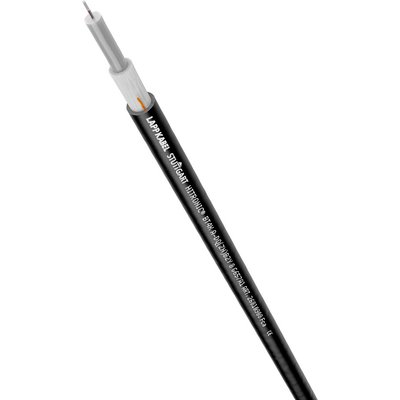

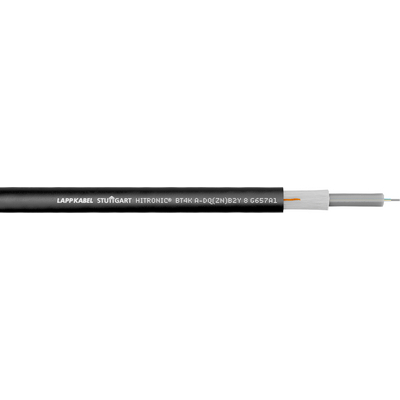

HITRONIC® BTxK

Benefits

• Due to their high bending insensitivity, single-mode fibres (OS2) in accordance with ITU-T G.657.A1 are ideal where space is limited. They allow tight bends without signal loss and simplify installation.
• Fiber optic cables with glass optical fiber (GOF) have a high data transmission rate and range.
• The low-friction outer sheath and small bending radii allow cables to be installed by blowing them in with air.
• No generation of electromagnetic interference by metal-free materials inside the conduit.
• Easy to handle thanks to flexible and compact design.

Application range

• For outdoor use
• WAN applications
• Suitable for direct burial
• Methods of Deployment: empty plastic pipes, ducts and trays
• Typical areas of use are solar and wind parks.

Product features

• Rodent-protection
• Colour-coded fibres
• PE outer shell is largely resistant to acids and alkalis.
• Gel-filled central loose tube ensures longitudinal and transversal watertightness and thus optimum fibre protection.
• Halogen-free sheath compound to meet special fire safety requirements.

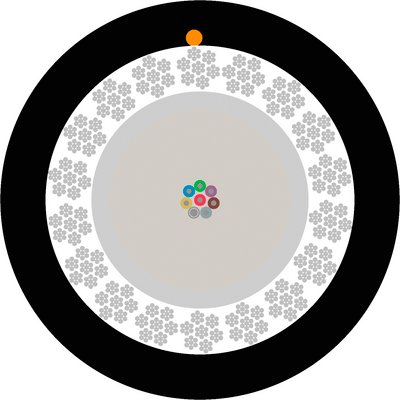

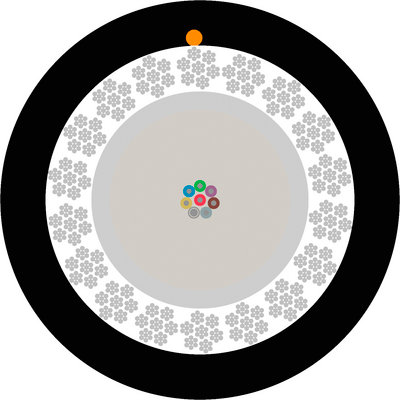

Product Make-up

• Glass fibres with primary coating
• Gel-filled loose tube
• With reinforced glass yarn for strain relief and rodent protection.
• Outer Sheath Material: HD-PE
• Colour: black (RAL 9005)

Classification ETIM 5

• ETIM 5.0 Class-Description: Fibre optic cable
•

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000034
• ETIM 6.0 Class-Description: Fibre optic cable
•

Core identification code

• Acc. to IEC 60304
•

Optical fibre type

• Core material: glass
• Cladding material: glass
•

Permissible bending radius

• Static: ≥ 10 x outer diameter
• Due installation: 20x OD
•

Permissible tensile force

• 8/12/24 fibres
  operation: 3000 N
  installation: 4000 N
  2x12/3x12/4x12 fibres
  operation: 4000 N
  installation: 6000 N
•

Temperature range

• Fixed installation: -40 up to +70°C
•
