HITRONIC® POF DUPLEX BUFFERED FIBRES

Polymer optical fibre as duplex buffered fibres version with PE sheath

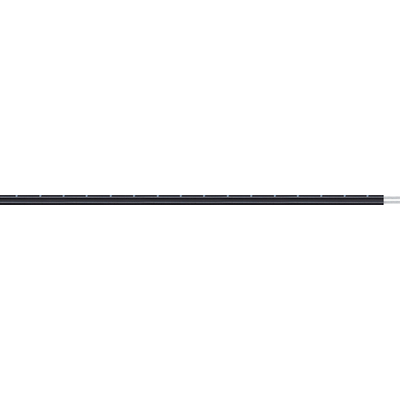

HITRONIC® POF DUPLEX PE, POF twin buffered fibres with PE buffer, J-V2Y 2x1P980/1000

For direct connector assembly

Low weight Halogen-free

Article number Article designation Fibre type Number of fibres Outer diameter [mm] Weight (kg/km)
28000002
HITRONIC® POF DUPLEX PE 980/1000 POF 2 2.2 7.6

Benefits

  • Transmission lengths up to 70 m
  • Suitable for direct connector assembly
  • Easy to handle
  • No crosstalk
  • EMC protection

Application range

  • For optical signal transmission in industrial applications
  • Very suitable for fixed installation in control cabinets, cable ducts, or pipes with low mechanical stress
  • Light mechanical stress
  • Identification by white dots

Product features

  • Halogen-free
  • Lightweight
  • High flexibility

Product Make-up

  • Polymer Optical Fibre (POF)
  • Twin cable
  • PE buffer tube
  • Without outer sheath
  • Colour: black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000034
  • ETIM 5.0 Class-Description: Fibre optic cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000034
  • ETIM 6.0 Class-Description: Fibre optic cable

Dimensions

  • Twin cable
    2x2.2mm

Core identification code

  • Black/black with white dots

Fibre type

  • POF - P980/1000

Standard designation

  • J-V2Y

Optical fibre type

  • Core material: PMMA
  • Cladding material: fluoropolymers

Permissible bending radius

  • ≥ 10 x outer diameter

Permissible tensile force

  • Fixed installation: 10 N
  • Short-term: 30 N

Temperature range

  • Operation: -55°C to +85°C
  • Installation: -10°C to +50°C

  • Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
  • Please find our standard lengths at: www.lappkabel.de/en/cable-standardlengths
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
