SILVYN® FPS-EDU

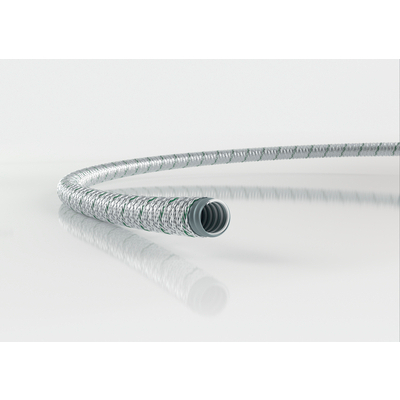

SILVYN® FPS-EDU is a highly flexible protection conduit made of PVC with steel wire braiding

High flexible and mechanical protection at the same time

product information (PDF)

Similar products
Accessories

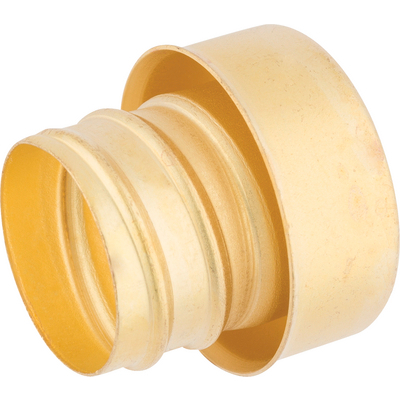

SILVYN® EDU-AS

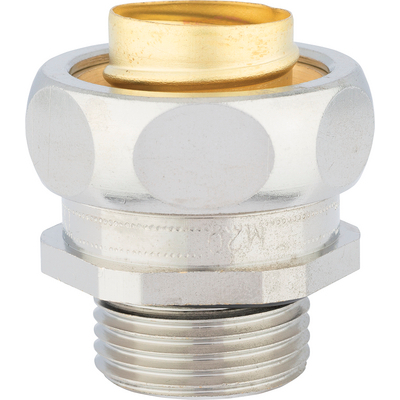

SILVYN® MSK-M FPS-EDU

SILVYN® MSK-M FPS-EDU

SILVYN® US FPS-EDU

SILVYN® US-M FPS-EDU

SILVYN® US FPS-EDU

SILVYN® US FPS-EDU

SILVYN® US-FPS-EDU-AS

SILVYN® US-FPS-EDU-AS

Article number	Nominal size	ID x OD mm	Bending radius (mm)	Suitable for SILVYN® MSK-M	Suitable for SILVYN® US-M	Suitable for SILVYN® US	PU ring (m)
SILVYN^® FPS-EDU
61802330	14	9.0 x 14.0	16	16 x 1,5	16 x 1,5	9	50
61802331	17	12.0 x 17.0	19	20 x 1,5	20 x 1,5	11	50
61802333	21	15.0 x 21.0	24	25 x 1,5	20 x 1,5	16	50
61802334	27	20.0 x 27.0	30	32 x 1,5	25 x 1,5	21	50
61802335	36	28.0 x 36.0	40	40 x 1,5	32 x 1,5	29	25
61802336	45	37.0 x 45.0	48	50 x 1,5	40 x 1,5	36	25
61802337	56	48.0 x 56.0	60	63 x 1,5	50 x 1,5	48	25

Benefits

Protects against hot chips
High-tensile
Highly flexible
Air-tight and impermeable
mechanical resistance

Application range

Mechanical engineering
Plant engineering
Automation technology
Used in areas where cables and wires could be damaged by welding sparks and hot chips
Robotics industry

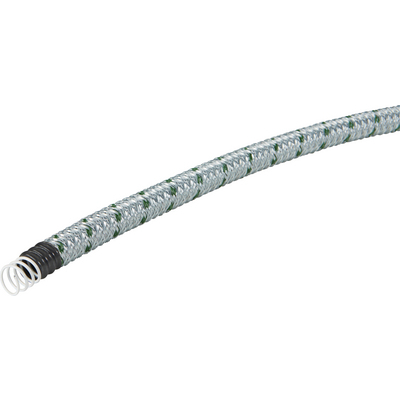

Product Make-up

PVC-insulated steel spring wire
Soft PVC outer sheath
Galvanised steel wire braiding

Note

PU = 10m (on request)

Classification ETIM 5

ETIM 5.0 Class-ID: EC001177
ETIM 5.0 Class-Description: Protective plastic hose

Classification ETIM 6

ETIM 6.0 Class-ID: EC001177
ETIM 6.0 Class-Description: Protective plastic hose

Material

insulated spring steel wire with Soft PVC and galvanized steel braid

Temperature range

-25°C to +90°C

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
