SILVYN® MSK-M EE

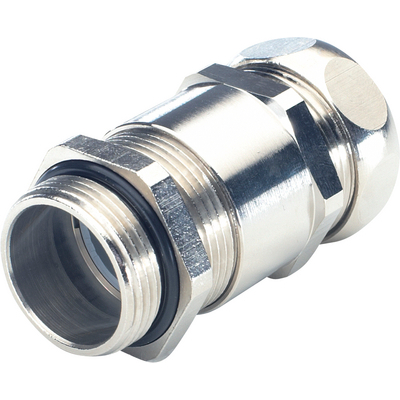

SILVYN® MSK-M EE - nickel-plated brass conduit fitting with integrated cable strain relief

Integrated SKINTOP® cable strain relief

Integrated SKINTOP<sup>®</sup> cable gland Robust Optimum strain relief Assembly time Maximum vibration protection Wide clamping range

CE

Article number Metric size Clamping range in mm Clear opening (mm) Suitable for SILVYN® FPS/FD-PU
SILVYN® MSK-M for SILVYN® FPS/FD-PU
55506070
12 x 1.5 3.0 - 7.0 6 7 x 10
55506071
16 x 1.5 4.5 - 10.0 9.3 10 x 14
55506072
20 x 1.5 7.0 - 13.0 11.5 13 x 17
55506073
25 x 1.5 9.0 - 17.0 13.4 16 x 21
55506074
32 x 1.5 11.0 - 21.0 19.5 22 x 27
55506075
40 x 1.5 19.0 - 28.0 27 29 x 36
55506076
50 x 1.5 27.0 - 35.0 36.4 38 x 45
55506077
63 x 1.5 34.0 - 45.0 46 48 x 56
SILVYN® MSK-SC-M for SILVYN® FPS/FD-PU
55506101
16 x 1.5 4.5 - 10.0 9.3 10 x 14
55506102
20 x 1.5 7.0 - 13.0 11.5 13 x 17
55506103
25 x 1.5 9.0 - 17.0 13.4 16 x 21
55506104
32 x 1.5 11.0 - 21.0 19.5 22 x 27
55506105
40 x 1.5 19.0 - 28.0 27 29 x 36
55506106
50 x 1.5 27.0 - 35.0 36.4 38 x 45

Benefits

  • Optimum cable and conduit strain relief
  • Maximum cable sealing
  • Fast and easy assembly
  • Wide clamping range
  • Anti-turn protection

Application range

  • In combination with protective conduit:

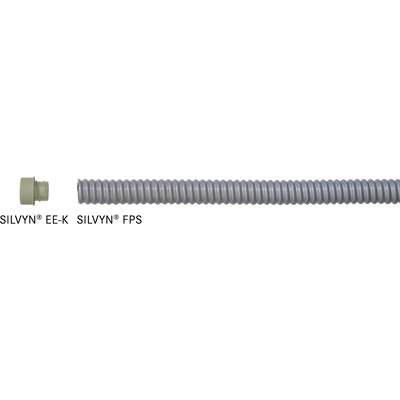

  • SILVYN® FPS

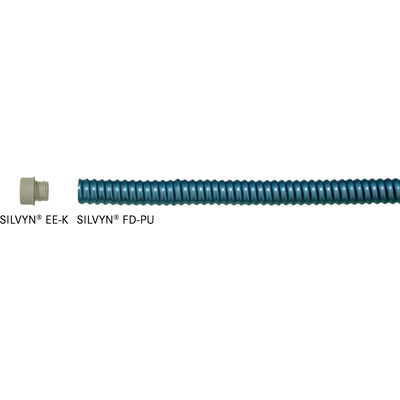

  • SILVYN® FD-PU
  • For indoor and outdoor use
  • Used in areas where cables and wires need to be provided with strain relief and additional sealing

Product features

  • Combination of SILVYN® and SKINTOP®

Product Make-up

  • SKINTOP® MS-M cable gland or
  • SKINTOP® MS-SC-M EMC connection
  • SILVYN® conduit connection via inner sleeve and cap nut

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001180
  • ETIM 5.0 Class-Description: Screw connection for protective metallic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001180
  • ETIM 6.0 Class-Description: Screw connection for protective metallic hose

Material

  • Basis type:
    Body: nickel-plated brass
    Conduit connector seal: CR/NBR
    Tube seal: TPE

Protection rating

  • Cable: IP 68
    Conduit:
    IP 54 with SILVYN® FPS, FD-PU

Temperature range

  • -30°C to +100°C

  • Other variations with multiple SKINTOP® DIX-M sealing inserts are available upon request.
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
