FIPLOCK^® ONE 90° Metal M

Conduit fitting system for highest requirements, suitable for FIPLOCK® PA6 / PA12

New conduit fitting system with innovative locking system

product information (PDF)

Article number	Metric size	SW wrench size mm	Thread length mm	Clear opening (mm)	Design	Suitable for FIPLOCK^® PA6 / PA12	Colour	Pieces / PU

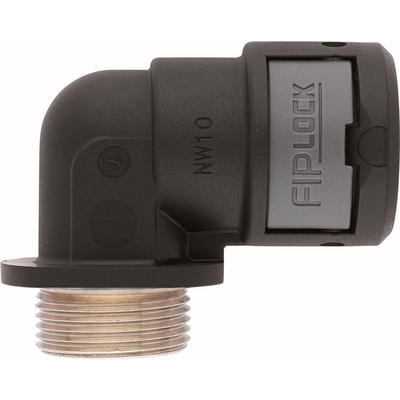

FIPLOCK^® ONE 90° Metal M - black
61804687	12 x 1.5	11	5	5.7	90° corner angle	10	black	10
61804688	16 x 1.5	14	5	8.7	90° corner angle	10	black	10
61804689	16 x 1.5	14	5	9	90° corner angle	12	black	10
61804690	20 x 1.5	18	6	12.8	90° corner angle	12	black	10
61804691	20 x 1.5	16	6	10.2	90° elbow angle	17	black	10
61804692	25 x 1.5	21	7	14.8	90° elbow angle	17	black	10
61804693	25 x 1.5	21	7	15.9	90° elbow angle	23	black	6
61804694	32 x 1.5	27	8	22.8	90° elbow angle	23	black	6
61804695	32 x 1.5	27	8	22.8	90° elbow angle	29	black	6
61804696	40 x 1.5	34	8	28.5	90° elbow angle	29	black	6
61804697	40 x 1.5	36	8	30.2	90° elbow angle	36	black	4
61804698	50 x 1.5	46	9	36.1	90° elbow angle	36	black	4
61804699	50 x 1.5	46	9	38.9	90° elbow angle	48	black	4
61804701	63 x 1.5	55	10	47.9	90° elbow angle	48	black	4

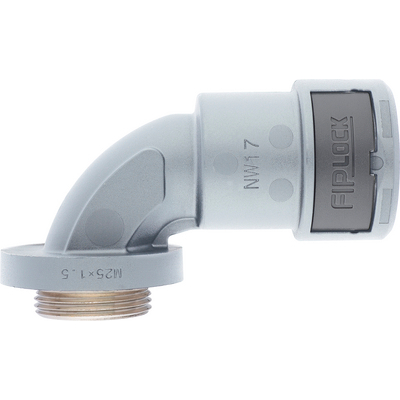

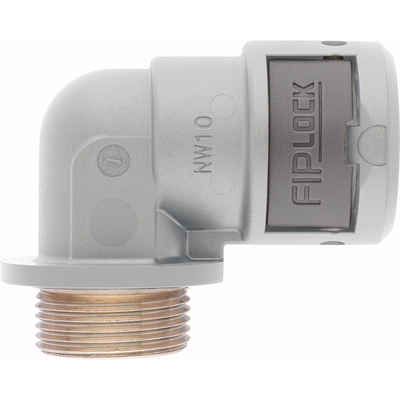

FIPLOCK^® ONE 90° Metal M - grey
61804704	12 x 1.5	11	5	5.7	90° corner angle	10	grey	10
61804706	16 x 1.5	14	5	8.7	90° corner angle	10	grey	10
61804707	16 x 1.5	14	5	9	90° corner angle	12	grey	10
61804708	20 x 1.5	18	6	12.8	90° corner angle	12	grey	10
61804709	20 x 1.5	16	6	10.2	90° elbow angle	17	grey	10
61804711	25 x 1.5	21	7	14.8	90° elbow angle	17	grey	10
61804713	25 x 1.5	21	7	15.9	90° elbow angle	23	grey	6
61804714	32 x 1.5	27	8	22.8	90° elbow angle	23	grey	6
61804715	32 x 1.5	27	8	22.8	90° elbow angle	29	grey	6
61804716	40 x 1.5	34	8	28.5	90° elbow angle	29	grey	6
61804717	40 x 1.5	36	8	30.2	90° elbow angle	36	grey	4
61804718	50 x 1.5	46	9	36.1	90° elbow angle	36	grey	4
61804719	50 x 1.5	46	9	38.9	90° elbow angle	48	grey	4
61804721	63 x 1.5	55	10	47.9	90° elbow angle	48	grey	4

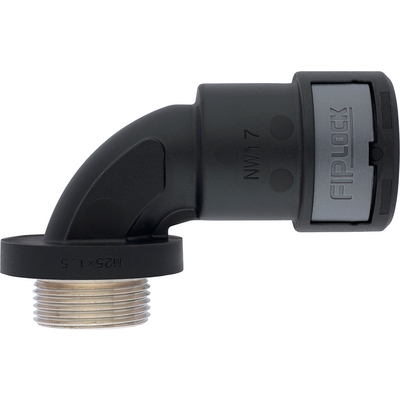

FIPLOCK^® ONE 90° Metal XL M - black
61804724	12 x 1.5	11	10	5.7	90° corner angle	10	black	10
61804725	16 x 1.5	14	10	8.7	90° corner angle	10	black	10
61804726	16 x 1.5	14	10	9	90° corner angle	12	black	10
61804727	20 x 1.5	18	10	12.8	90° corner angle	12	black	10
61804728	20 x 1.5	16	10	10.2	90° elbow angle	17	black	10
61804729	25 x 1.5	21	11	14.8	90° elbow angle	17	black	10
61804731	25 x 1.5	21	11	15.9	90° elbow angle	23	black	6
61804734	32 x 1.5	27	13	22.8	90° elbow angle	23	black	6
61804735	32 x 1.5	27	13	22.8	90° elbow angle	29	black	6
61804736	40 x 1.5	34	13	28.5	90° elbow angle	29	black	6
61804737	40 x 1.5	36	13	30.2	90° elbow angle	36	black	4
61804738	50 x 1.5	46	14	36.1	90° elbow angle	36	black	4
61804739	50 x 1.5	46	14	38.9	90° elbow angle	48	black	4
61804745	63 x 1.5	55	14	47.9	90° elbow angle	48	black	4

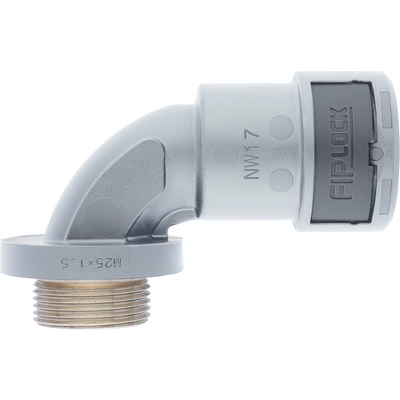

FIPLOCK^® ONE 90° Metal XL M - grey
61804746	12 x 1.5	11	10	5.7	90° corner angle	10	grey	10
61804747	16 x 1.5	14	10	8.7	90° corner angle	10	grey	10
61804748	16 x 1.5	14	10	9	90° corner angle	12	grey	10
61804749	20 x 1.5	18	10	12.8	90° corner angle	12	grey	10
61804751	20 x 1.5	16	10	10.2	90° elbow angle	17	grey	10
61804754	25 x 1.5	21	11	14.8	90° elbow angle	17	grey	10
61804755	25 x 1.5	21	11	15.9	90° elbow angle	23	grey	6
61804756	32 x 1.5	27	13	22.8	90° elbow angle	23	grey	6
61804757	32 x 1.5	27	13	22.8	90° elbow angle	29	grey	6
61804758	40 x 1.5	34	13	28.5	90° elbow angle	29	grey	6
61804759	40 x 1.5	36	13	30.2	90° elbow angle	36	grey	4
61804761	50 x 1.5	46	14	36.1	90° elbow angle	36	grey	4
61804764	50 x 1.5	46	14	38.9	90° elbow angle	48	grey	4
61804765	63 x 1.5	55	14	47.9	90° elbow angle	48	grey	4

Benefits

Very high tensile strength due to all around tooth system
Ensures mounting safety due to integrated coding system
Excellent IP rating
Cost-saving due to quick and easy installation

Application range

Suitable for FIPLOCK^® PA6 / PA12
Demand of increased liquid tightness
For indoor and outdoor use

Product features

All around locking mechanism due to 360° tooth system
Locking mechanism with integrated coding system
Extended sealing range across multiple corrugated conduit waves

Classification ETIM 5

ETIM 5.0 Class-ID: EC001176
ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

ETIM 6.0 Class-ID: EC001176
ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

IEC EN 61386-23
EN 45545-2 HL3

Colour delivered

Grey (RAL 7005)
Black (RAL 9005), UV-resistant

Material

PA 6
Halogen-free
Fire behaviour according to UL 94V-0

Protection rating

IP66/IP67/IP68/IP69

Temperature range

-45°C to +120°C

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
