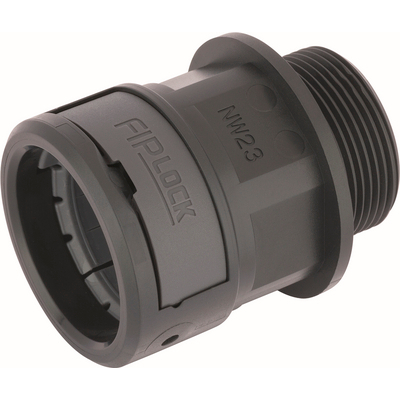

FIPLOCK® ONE PG

Conduit fitting system for highest requirements, suitable for FIPLOCK® PA6 / PA12

FIPLOCK® ONE PG

New conduit fitting system with innovative locking system

Rail Good chemical resistance Flame-retardant Halogen-free Cold-resistant Maximum vibration protection Mechanical resistance Assembly time Low weight Optimum strain relief Robust Reliability UV-resistant Waterproof

CE

Article number PG size SW wrench size mm Thread length mm Clear opening (mm) Suitable for FIPLOCK® PA6 / PA12 Colour Pieces / PU
FIPLOCK® ONE PG black
61804243
7 17 11 7.8 7 black 10
61804244
9 20 11 10.9 10 black 10
61804245
11 22 11 12 12 black 10
61804246
13.5 22 11 13.7 12 black 10
61804247
16 27 11 15.8 17 black 10
61804248
21 36 12 21.4 23 black 6
61804249
29 41 12 29.4 29 black 6
61804250
36 52 13 35.4 36 black 4
61804251
48 65 13 50.5 48 black 4
FIPLOCK® ONE PG grey
61804252
7 17 11 7.8 7 grey 10
61804253
9 20 11 10.9 10 grey 10
61804254
11 22 11 12 12 grey 10
61804255
13.5 22 11 13.7 12 grey 10
61804256
16 27 11 15.8 17 grey 10
61804257
21 36 12 21.4 23 grey 6
61804258
29 41 12 29.4 29 grey 6
61804259
36 52 13 35.4 36 grey 4
61804260
48 65 13 50.5 48 grey 4

Benefits

  • Very high tensile strength due to all around tooth system
  • Ensures mounting safety due to integrated coding system
  • Excellent IP rating
  • Cost-saving due to quick and easy installation

Application range

  • Suitable for FIPLOCK® PA6 / PA12
  • Demand of increased liquid tightness
  • For indoor and outdoor use

Product features

  • All around locking mechanism due to 360° tooth system
  • Locking mechanism with integrated coding system
  • Extended sealing range across multiple corrugated conduit waves

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23
  • EN 45545-2 HL3

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • PA 6
    Halogen-free
  • Fire behaviour according to UL 94V-0

Protection rating

  • IP66/IP67/IP68/IP69

Temperature range

  • -45°C to +120°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
