FIPLOCK® ONE 90° Metal PG

Conduit fitting system for highest requirements, suitable for FIPLOCK® PA6 / PA12

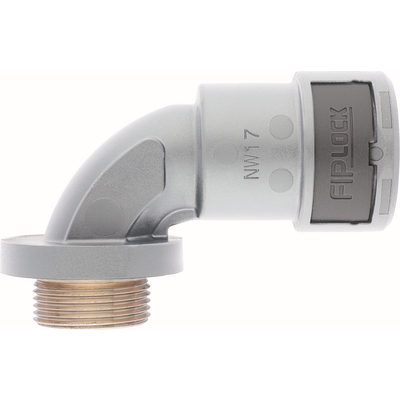

FIPLOCK® ONE 90° Metal PG

New conduit fitting system with innovative locking system

Rail Good chemical resistance Flame-retardant Halogen-free Cold-resistant Maximum vibration protection Mechanical resistance Assembly time Low weight Optimum strain relief Robust Reliability UV-resistant Waterproof

CE

Article number PG size SW wrench size mm Thread length mm Clear opening (mm) Design Suitable for FIPLOCK® PA6 / PA12 Colour Pieces / PU
FIPLOCK® ONE 90° Metal PG - black
61804766 9 14 12 8.7 90° corner angle 10 black 10
61804767 11 16 12 11.8 90° corner angle 12 black 10
61804768 13.5 16 13 10.2 90° elbow angle 17 black 10
61804769 16 18 13 13.2 90° elbow angle 17 black 10
61804774 21 24 14 19.3 90° elbow angle 23 black 6
61804775 29 34 14 26.4 90° elbow angle 29 black 6
61804776 36 46 17 36.1 90° elbow angle 36 black 4
61804777 48 55 17 47.9 90° elbow angle 48 black 4
FIPLOCK® ONE 90° Metal PG - grey
61804778 9 14 12 8.7 90° corner angle 10 grey 10
61804779 11 16 12 11.8 90° corner angle 12 grey 10
61804801 13.5 16 13 10.2 90° elbow angle 17 grey 10
61804802 16 18 13 13.2 90° elbow angle 17 grey 10
61804803 21 24 14 19.3 90° elbow angle 23 grey 6
61804804 29 34 14 26.4 90° elbow angle 29 grey 6
61804805 36 46 17 36.1 90° elbow angle 36 grey 4
61804806 48 55 17 47.9 90° elbow angle 48 grey 4

Benefits

  • Very high tensile strength due to all around tooth system
  • Ensures mounting safety due to integrated coding system
  • Excellent IP rating
  • Cost-saving due to quick and easy installation

Application range

  • Suitable for FIPLOCK® PA6 / PA12
  • Demand of increased liquid tightness
  • For indoor and outdoor use

Product features

  • All around locking mechanism due to 360° tooth system
  • Locking mechanism with integrated coding system
  • Extended sealing range across multiple corrugated conduit waves

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23
  • EN 45545-2 HL3

Colour delivered

  • Grey (RAL 7005)
    Black (RAL 9005), UV-resistant

Material

  • PA 6
    Halogen-free
  • Fire behaviour according to UL 94V-0

Protection rating

  • IP66/IP67/IP68/IP69

Temperature range

  • -45°C to +120°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
