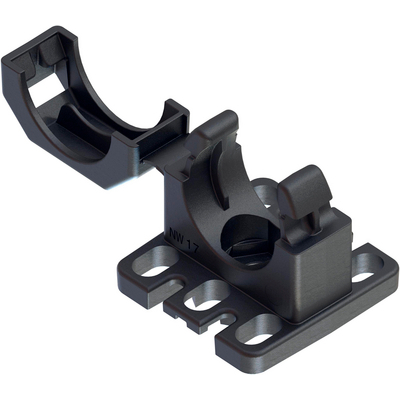

FIPLOCK® ONE Conduit holder

Conduit fitting system for highest requirements, suitable for FIPLOCK® PA6 / PA12

FIPLOCK® ONE Conduit holder

New conduit fitting system with innovative locking system

Rail Good chemical resistance Flame-retardant Halogen-free Cold-resistant Maximum vibration protection Mechanical resistance Assembly time Low weight Optimum strain relief Robust Reliability UV-resistant Waterproof

CE

Article number Nominal size Hole Ø (mm) Design Suitable for FIPLOCK® PA6 / PA12 Colour
FIPLOCK® ONE-H black - Version S
61805079 07 M4 - 7 black
61805080 10 M5 - 10 black
61805081 12 M5 - 12 black
61805082 17 M6 - 17 black
61805083 23 M6 - 23 black
61805084 29 M6 - 29 black
61805085 36 M6 - 36 black
61805086 48 M6 - 48 black
FIPLOCK® ONE-H grey - Version S
61805087 07 M4 - 7 grey
61805088 10 M5 - 10 grey
61805089 12 M5 - 12 grey
61805090 17 M6 - 17 grey
61805091 23 M6 - 23 grey
61805092 29 M6 - 29 grey
61805093 36 M6 - 36 grey
61805094 48 M6 - 48 grey
FIPLOCK® ONE-H black - Version H
61805095 10 M5 with base plate 10 black
61805096 12 M5 with base plate 12 black
61805097 17 M6 with base plate 17 black
61805098 23 M6 with base plate 23 black
61805099 29 M6 with base plate 29 black
61805100 36 M6 with base plate 36 black
61805101 48 M6 with base plate 48 black
FIPLOCK® ONE-H grey - Version H
61805102 10 M5 with base plate 10 grey
61805103 12 M5 with base plate 12 grey
61805104 17 M6 with base plate 17 grey
61805105 23 M6 with base plate 23 grey
61805106 29 M6 with base plate 29 grey
61805107 36 M6 with base plate 36 grey
61805108 48 M6 with base plate 48 grey

Benefits

  • Very high tensile strength due to all around tooth system
  • Ensures mounting safety due to integrated coding system
  • Excellent IP rating
  • Cost-saving due to quick and easy installation

Application range

  • Suitable for FIPLOCK® PA6 / PA12
  • Demand of increased liquid tightness
  • For indoor and outdoor use

Product features

  • All around locking mechanism due to 360° tooth system
  • Locking mechanism with integrated coding system
  • Extended sealing range across multiple corrugated conduit waves

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23
  • EN 45545-2 HL3

Colour delivered

  • Grey (RAL 7005)
    Black (RAL 9005), UV-resistant

Material

  • PA 6
    Halogen-free
  • Fire behaviour according to UL 94V-0

Protection rating

  • IP66/IP67/IP68/IP69

Temperature range

  • -45°C to +120°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
