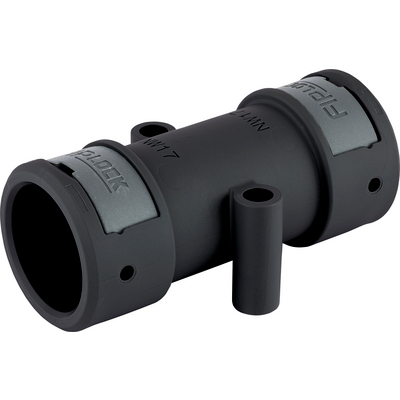

FIPLOCK® ONE Coupler (screw connection)

Conduit fitting system for highest requirements, suitable for FIPLOCK® PA6 / PA12

FIPLOCK® ONE Coupler (screw connection)

New conduit fitting system with innovative locking system

Rail Good chemical resistance Flame-retardant Halogen-free Cold-resistant Maximum vibration protection Mechanical resistance Assembly time Low weight Optimum strain relief Robust Reliability UV-resistant Waterproof

CE

Article number Nominal size Hole Ø (mm) Suitable for FIPLOCK® PA6 / PA12 Colour Pieces / PU

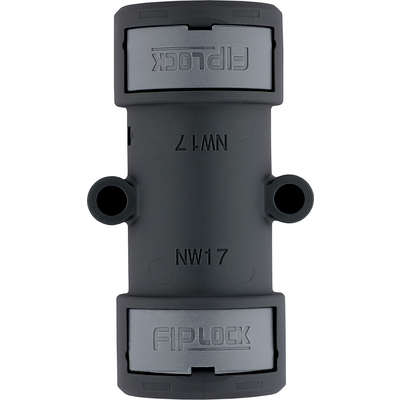

FIPLOCK® ONE-CS black
61805039 12 M4 12 black 10
61805040 17 M5 17 black 10
61805041 23 M6 23 black 6
61805042 29 M6 29 black 6
61805043 36 M6 36 black 4
61805044 48 M6 48 black 4

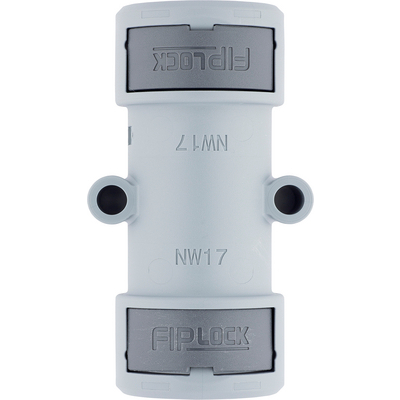

FIPLOCK® ONE-CS grey
61805045 12 M4 12 grey 10
61805046 17 M5 17 grey 10
61805047 23 M6 23 grey 6
61805048 29 M6 29 grey 6
61805049 36 M6 36 grey 4
61805050 48 M6 48 grey 4

Benefits

  • Very high tensile strength due to all around tooth system
  • Ensures mounting safety due to integrated coding system
  • Excellent IP rating
  • Cost-saving due to quick and easy installation

Application range

  • Suitable for FIPLOCK® PA6 / PA12
  • Demand of increased liquid tightness
  • For indoor and outdoor use

Product features

  • All around locking mechanism due to 360° tooth system
  • Locking mechanism with integrated coding system
  • Extended sealing range across multiple corrugated conduit waves

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23
  • EN 45545-2 HL3

Colour delivered

  • Grey (RAL 7005)
    Black (RAL 9005), UV-resistant

Material

  • PA 6
    Halogen-free
  • Fire behaviour according to UL 94V-0

Protection rating

  • IP66/IP67/IP68/IP69

Temperature range

  • -45°C to +120°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
