EPIC® POWER LS1 A3

Circular connectors for servomotors and power supply

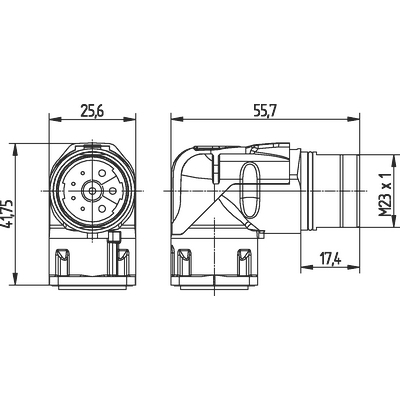

EPIC® LS1 for male contacts angled, swivel

  • Rotateable with clearly defined adjustment positions
  • Made in Germany

Mechanical and plant engineering Wind Energy Good chemical resistance Corrosion-resistant Maximum vibration protection Mechanical resistance Assembly time Space requirement Robust Interference signals Waterproof Variety of approval certifications

CE cRUus EAC

Article number Article description Contacts included Clamping range in mm Fastening type Pin configuration Pieces / PU
Type LS1 A3, angled, rotatable, 6-pin, for male contacts
24420058
LS1 A3 6 - Ø 2.7 mm (4x) 5+PE 5
24420059
LS1 A3 - - Ø 2.7 mm (4x) 5+PE 20
Type LS1 A3, angled, rotatable, 8-pin, for male contacts
24420056
LS1 A3 8 - Ø 2.7 mm (4x) 3+PE+4 5
24420057
LS1 A3 - - Ø 2.7 mm (4x) 3+PE+4 20

Benefits

  • High power at smallest installation space, Optimal solution for electric motors
  • EMC-optimised design
  • Safety use in field environment by high protection class

Application range

  • Plant engineering
  • Servo drives and servo assemblies

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002635
  • ETIM 5.0 Class-Description: Circular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002635
  • ETIM 6.0 Class-Description: Circular connector (industrial connector)

Rated voltage (V)

  • 630 V (2 mm contacts)
  • 250 V (1 mm contacts)

Rated impulse voltage

  • 6 kV (2 mm contacts)
  • 4 kV (1 mm contacts)

Rated current (A)

  • 26A/3+PE+4, 25A/5+PE (2mm contacts)
  • 7 A (1 mm contacts)

Pollution degree

  • 3

Contact resistance

  • < 4 mOhm

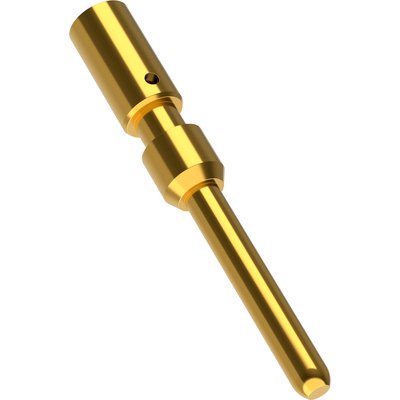

Contacts

  • Gold-plated brass

Number of contacts

  • 3+PE+4(2mm/1mm)
  • 5+PE(2mm)

Termination methods

  • Crimp termination: 0.5 - 2.5 mm² (2 mm contacts)
  • Crimp termination: 0.14 - 1.0 mm² (1 mm contacts)

Material

  • Housing: nickel-plated zinc die-casting, nickel-plated brass
    Insert: PA,
    Seal: FPM

Protection rating

  • IP 65

Cycle of mechanical operation

  • 500

VDE-tested

  • UL File Number: E249137

Temperature range

  • -25°C up to +125°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
