EPIC® POWER M12 630V panel base

Circular connectors for servomotors and power supply

EPIC® M12 Power panel base, 630V and 12A, screw connection 0.75-1.5mm²

simply screw in given metric thread
Made in Germany

product information (PDF)

Article number	Article description	Fastening type	Packaging unit

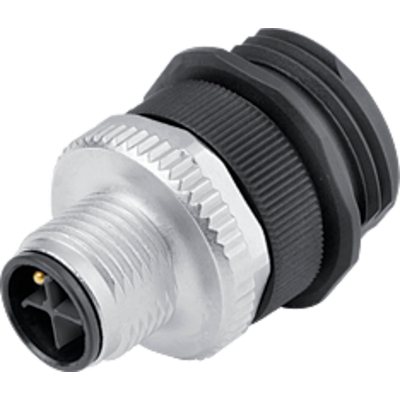

44423144	Panel base with pin contacts	M20	1

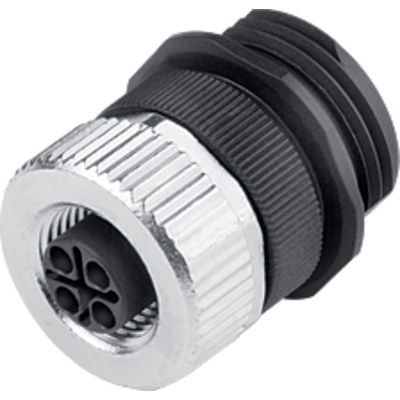

44423145	Panel base with socket contacts	M20	1

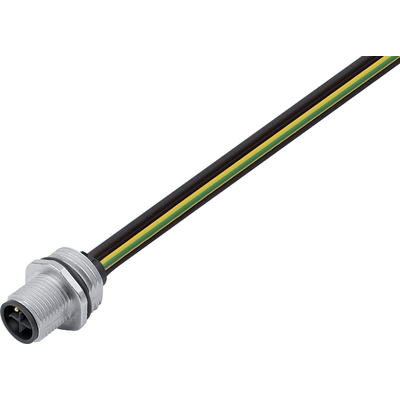

44423146	Panel base with pin contacts	M16 (with wires 4xAWG16/0.2m)	1

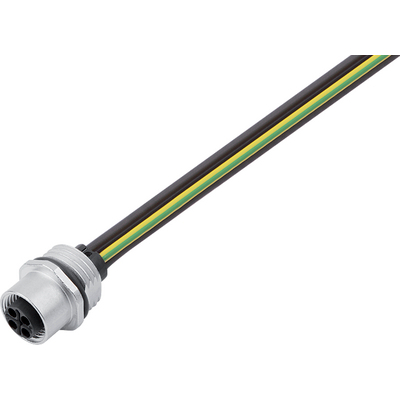

44423147	Panel base with socket contacts	M16 (with wires 4xAWG16/0.2m)	1

Benefits

Standard M20 Version with screw contacts
small M16 Version with preharnessed wires
high performance gold plated contacts

Application range

Power Supply for small devices
for 1-phase cables or 3-phase wihout N

Classification ETIM 5

ETIM 5.0 Class-ID: EC002635
ETIM 5.0 Class-Description: Circular connector (industrial connector)

Classification ETIM 6

ETIM 6.0 Class-ID: EC002635
ETIM 6.0 Class-Description: Circular connector (industrial connector)

Rated voltage (V)

630 V

Rated impulse voltage

6 kV

Rated current (A)

12 A

Pollution degree

3

Contact resistance

< 3 mOhm

Number of contacts

3 + PE
S-coded

Termination methods

Screw termination: 0.75 - 1.5mm²
with 0,2m PP-wire, 4x1.5mm²

Protection rating

IP 67

Cycle of mechanical operation

100

Temperature range

-40 °C to +85 °C
