EPIC® Adapter plates for 2 D-Sub inserts

The adapter plates are suitable for use with D-Sub connector inserts in H-B housings.

Article number Article descriptionVersionPackaging unit
Adapter plates for 2 D-Sub inserts
11764201

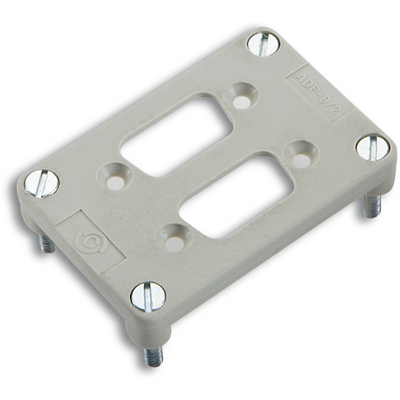

H-B 6 / 2xM-D 9for 2 x D-Sub 9--pin10
11764203

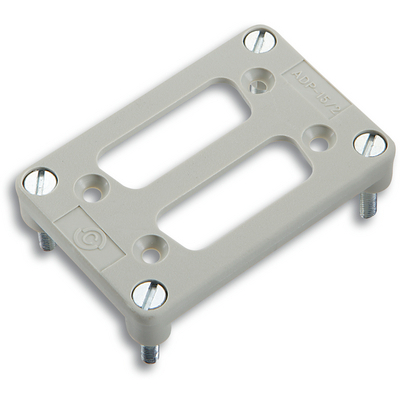

H-B 6 / 2xM-D 15for 2 x D-Sub 15--pin10
11764301

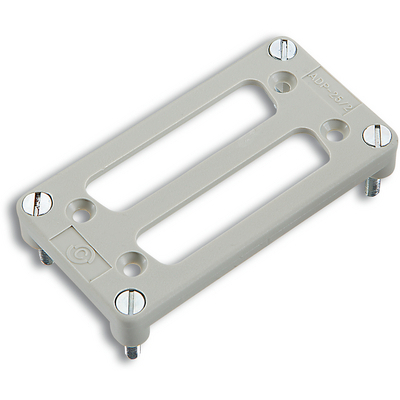

H-B 10 / 2xM-D 25for 2 x D-Sub 25--pin10

Product features

  • For use of D-Sub inserts in H-B housings

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002309
  • ETIM 5.0 Class-Description: Adapter plate industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002309
  • ETIM 6.0 Class-Description: Adapter plate industrial connectors

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
