EPIC® MH 6

High flexibility by the use of any combination of inserts in one connector

Article number Article descriptionContact typeNumber of operating contactsSlotsPieces / PU
44423218
EPIC® MHS 6 CMmale6110
44423219

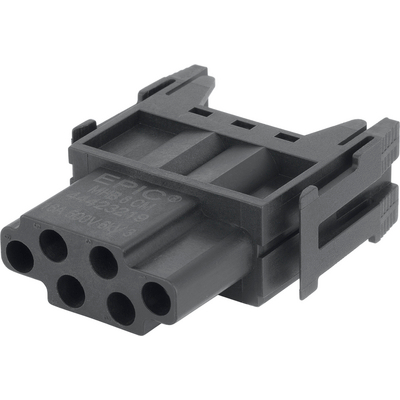

EPIC® MHB 6 CMfemale6110

Benefits

  • Module 6 pole for control signals
  • Crimp connection for permanent vibration proof contacting
  • EPIC® MH system is mateable with the market standard
  • The mix of different functions in one plug guarantees high flexibility
  • Railway applications
    - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3

Application range

  • Mechanical engineering
  • Robotics industry
  • Plant engineering
  • Renewable energy
  • Railway applications / vehicle construction

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • 500

Rated impulse voltage

  • 6 kV

Rated current (A)

  • 16 A

Pollution degree

  • 3

Flammability

  • UL94 V-0

Contact resistance

  • < 5 mOhm

Number of contacts

  • 6

Termination methods

  • Crimp termination

Material

  • Polyamide, glass fibre-reinforced

Cycle of mechanical operation

  • 500

Certifications

  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +125°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
