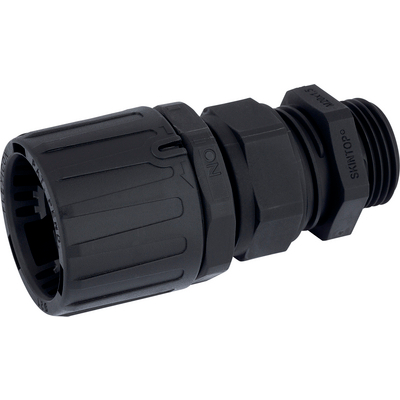

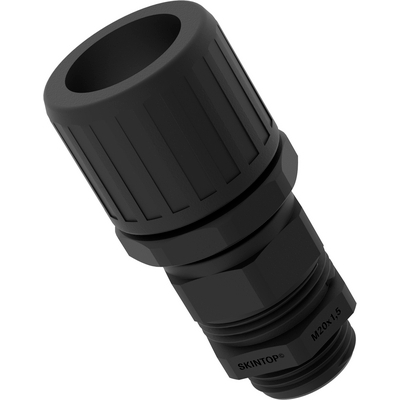

SILVYN® FPAD-M

Conduit fitting with Integrated cable strain relief for use with protective conduits SILVYN® FPAS and SILVYN® HCC

Integrated SKINTOP® cable strain relief

Maximum vibration protection Assembly time Optimum strain relief Integrated SKINTOP<sup>®</sup> cable gland Temperature-resistant UV-resistant Waterproof

CE

Article number Metric size Clamping range in mm Thread length mm Suitable for SILVYN® FPAS Suitable for SILVYN® HCC Pieces / PU
SILVYN® FPAD-M IP66
61805112
16 x 1.5 4.0 - 10.0 8 16 16 10
61805113
20 x 1.5 6.0 - 13.0 9 20 20 10
61805114
25 x 1.5 8.0 - 17.0 10 25 25 10
SILVYN® FPAD-M IP68
61805109 16 x 1.5 4.0 - 10.0 8 16 16 10
61805110 20 x 1.5 6.0 - 13.0 9 21 - 10
61805111 25 x 1.5 8.0 - 17.0 10 28 - 10

Benefits

  • Provides additional strain relief for cable(s) through integrated SKINTOP® cable gland with flexible lamellas.
  • Quick-release fastener with locking device protects against unintentional opening of the conduit system.
  • Simple disassembly of the conduit fitting by help of a screwdriver.
  • Liquid-tight in accordance with protection class IP 66 / IP 68 (on the hose side, in conjunction with SILVYN® FPAS and SILVYN® HCC protective conduits).
  • Large, variable clamping ranges allow for different cable outer diameters.

Application range

  • For universal use at machine interfaces to connect a protective conduit system.
  • For protective conduit systems that require additional strain relief while maintaining a high level of sealing.
  • For use with SILVYN® FPAS and SILVYN® HCC protective conduits.
  • Can be used in dry, wet and especially in rough and oily environments.
  • Withstands chemical and mechanical stress.

Product features

  • Good weather and UV-resistance
  • Conduit fitting is openable with a screwdriver

Product Make-up

  • Metric connection thread
  • Body with inner sealing
  • Upper part with integrated all-round toothing
  • Integrated SKINTOP® cable strain relief

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001176
  • ETIM 5.0 Class-Description: Screw connection for corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001176
  • ETIM 6.0 Class-Description: Screw connection for corrugated plastic hose

Certifications

  • IEC EN 61386-23

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • PA66
    Halogen-free

Protection rating

  • IP66 or IP68 depending on the fitting

Temperature range

  • -30°C to +100°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
