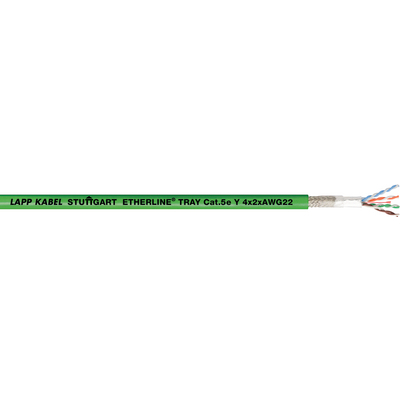

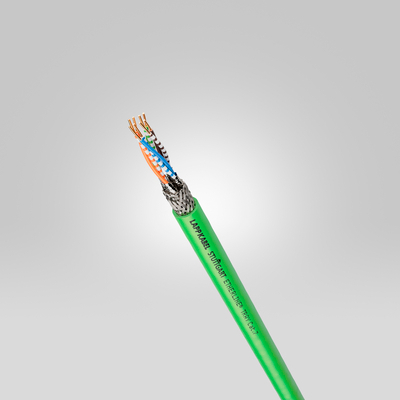

ETHERLINE® TRAY

Industrial Ethernet cable for general purpose installations, PLTC and CMG- approval acc. to UL and CSA, suitable for EtherNet/IP applications, 1 up to 10 Gbit/s data transmission

PLTC (power limited tray cable) for protected use on cable trays

Supplementary automation components from LappMechanical and plant engineeringFlame-retardantMechanical resistanceOil-resistant

CULUScRUus

Article number Article designationNumber of pairs and AWG per conductorOuter diameter mmCopper index (kg/km)Weight (kg/km)
2170472ETHERLINE TRAY Cat.7 Y 4x2xAWG22/14x2xAWG22/18.9356.14101

Benefits

  • Wide application range due to multiple certifications
  • 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
  • Cat.7 qualified for 10Gbit/s

Application range

  • suitable for EtherNet/IP applications
  • Fixed Installation
  • Industrial machinery, plant engineering in the USA
  • Can be used for Industrial Ethernet in harsh industrial environments
  • Methods of Deployment: laying in trunking, ducts, trays, building riser

Product features

  • High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
  • Flame-retardant according to CSA FT4
    UL Vertical-Tray Flame Test
  • Oil-resistant according to UL OIL RES I

Norm references / Approvals

  • c(UL)us Typ CMG (75°C) acc.to UL 444 / CSA 22.2
  • c(UL)us Typ PLTC acc. to UL 13
  • electrical requirements acc. to IEC 61156-5

Product Make-up

  • Core insulation: Based on Polyolefin
  • Colour-coded in accordance with EIA/TIA 568A and B
  • TP structure
  • PVC outer sheath

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000830
  • ETIM 6.0 Class-Description: Data cable

Peak operating voltage

  • (not for power applications) 125 V

Minimum bending radius

  • Flexing: 15 x outer diameter
  • Fixed installation: 10 x outer diameter

Characteristic impedance

  • nom. 100 Ω acc. to IEC 61156-6

Temperature range

  • Occasional flexing: -25°C to +80°C
  • Fixed installation: -40°C to +80°C

  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
