EPIC® H-D 7 machined
Multi-pole inserts for machined crimp contacts
Show video
External content from YouTube
Please click to load the video. YouTube will then set cookies and also transmit your IP address to YouTube. If you are logged into your YouTube account, you enable YouTube to allocate your surfing behavior directly to your personal profile. You can prevent this by logging out of your YouTube account. You can find further information in our privacy notice.

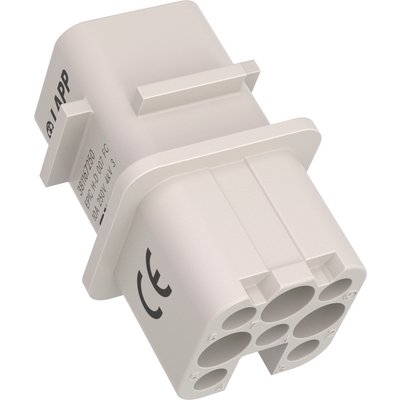

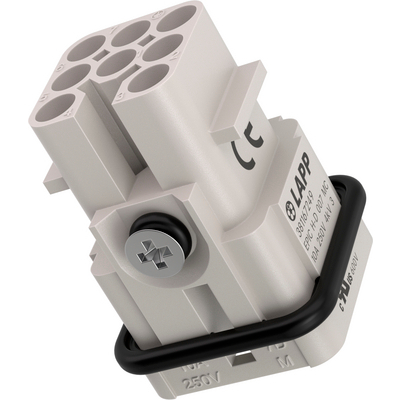

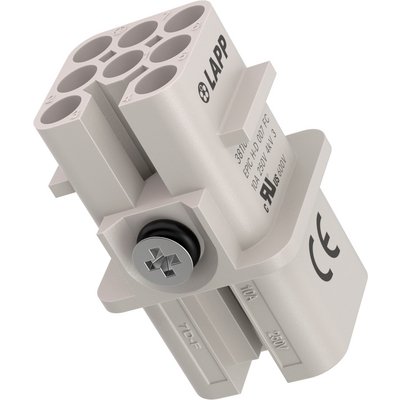

The compact standard insert has machined contacts and is suitable, for example, for control systems and machine or device manufacturing.
- Compact, powerful standard insert
- For machined contacts for fast processing with the crimping tool
Benefits
- Small, high-performance connector
- High performance crimping contacts
Application range
- Machine and equipment manufacturing
- Control engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- IEC: 250 V
UL: 600 V
CSA: 600 V
Rated impulse voltage
- 4 kV
Rated current (A)
- IEC: 10 A
UL: 10 A
CSA: 10 A
Pollution degree
- 3
Flammability
- UL94 V-0
Contact resistance
- < 2 mOhm
Contacts
- Copper alloy, hard silver/gold-plated
Number of contacts

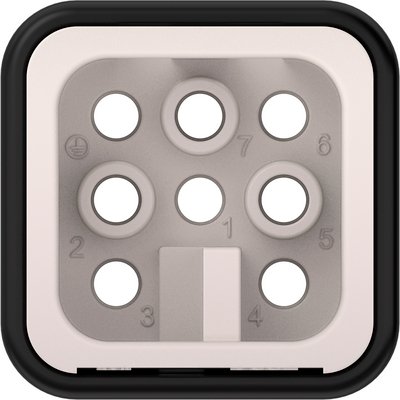

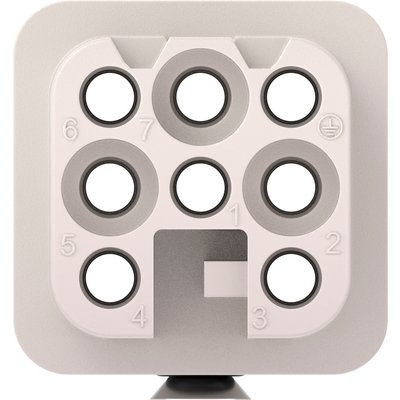

- 7 + PE
Termination methods
- Crimp termination: 0.14 - 2.5 mm²
Material
- PBT Polyester
Cycle of mechanical operation
- 500
Certifications
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
